Looking for professional cartridge soldering without the professional price tag? The AIFEN A5 Pro delivers 120W of power with JBC-compatible cartridge technology and a clear LCD display showing real-time temperature, heating percentage, and power bar—all the feedback you need for precision work.
This station uses program chip temperature control for 2-second heat-up and precise thermal management. Available in T115, T210, T245, or complete 3-handle configurations, it handles everything from microscope-level phone repair to heavy-duty ground plane work. All handles are interchangeable on the same base station.
At a Glance
| Performance | Convenience |
|---|---|
| 120W maximum power output | LCD display with power bar |
| 100°C – 450°C temperature range | Real-time temperature readout |
| ~2-second heat-up | Heating percentage display |
| Program chip temperature control | Auto-sleep with metal ring detection |
| Temperature compensation | Temperature calibration function |
✓ Available in T115, T210, T245, or complete 3-handle kit ✓ All handles interchangeable on same base station ✓ Compatible with JBC-style cartridges ✓ 3 memory channel presets ✓ 4 standby temperature options ✓ Short-circuit protection ✓ Universal voltage (110V–240V)

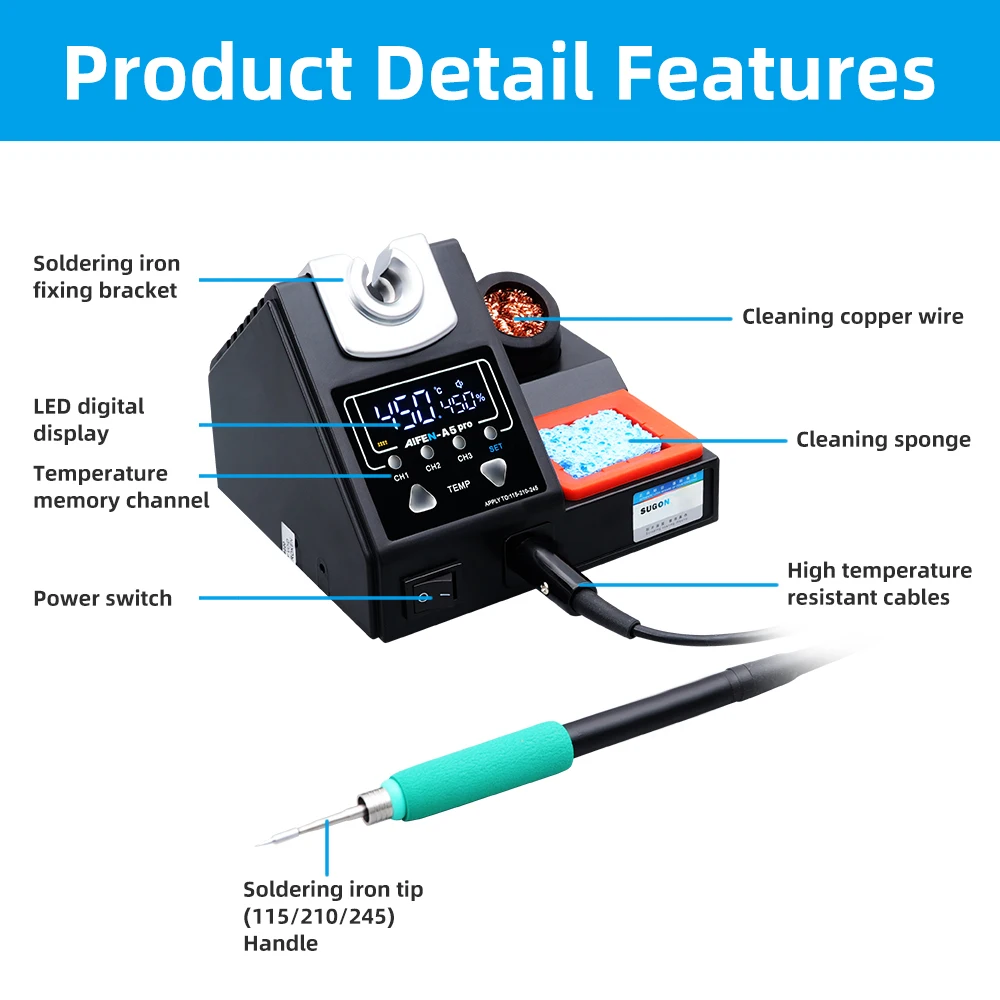

LCD Display with Complete Feedback
Most budget stations show temperature and nothing else. The AIFEN A5 Pro gives you the complete picture:
| Display Element | What It Shows |
|---|---|
| Real-time temperature | Actual tip temperature right now |
| Heating percentage | How much power is being delivered |
| Temperature power bar | Visual indication of thermal demand |
Why this matters:
→ Watch thermal recovery happen in real time → See power draw spike when touching cold pads → Understand what’s happening at your tip → Know exactly when you’re at stable temperature
The clear LCD remains readable in any workshop lighting. Essential feedback for precision work.
Program Chip Temperature Control
Traditional soldering stations use AC voltage to regulate temperature. This creates lag, overshoot, and inconsistent heat. The AIFEN A5 Pro uses program chip control instead.
| Traditional AC Control | AIFEN A5 Pro Chip Control |
|---|---|
| Slow temperature response | ~2-second heat-up |
| Temperature lag under load | Real-time compensation |
| Overshoot and undershoot | Precise regulation |
| Inconsistent accuracy | Set 350°C, get 350°C |
The chip monitors temperature continuously and adjusts power delivery in real time. Your cartridge maintains the set temperature even when heat transfers to large pads, ground planes, or thermal mass.
Choose Your Configuration
The AIFEN A5 Pro is available in four configurations. All handles are interchangeable on the same base station—start with one and add more later, or get the complete kit from the start.
AIFEN A5 Pro with T245 Handle
Best for: General bench work, console repairs, motherboards, large connectors
The T245 handle with C245 cartridges delivers maximum 120W power. It handles large solder joints, ground planes, shield cans, and HDMI port replacements. The larger cartridge size stores more thermal energy for demanding joints.
Included: 1x T245 handle + 3x C245 cartridges (I, IS, K tips)
Choose T245 if you: → Repair gaming consoles regularly → Work on laptop motherboards → Need one setup that handles most tasks → Deal with large ground connections
AIFEN A5 Pro with T210 Handle
Best for: Mobile phone repair, precision SMD work, small electronics, fine-pitch packages
The T210 handle with C210 cartridges offers a compact grip for precision work. It handles IC sockets, fine-pitch QFP and SOIC packages, small flying wires, and medium solder joints.
Included: 1x T210 handle + 3x C210 cartridges (I, IS, K tips)
Choose T210 if you: → Repair mobile phones professionally → Do frequent SMD rework → Work on small electrical appliances → Need precision with decent thermal power
AIFEN A5 Pro with T115 Handle
Best for: Microscope-level micro-repair, ultra-fine circuits, multi-layer board work
The T115 handle with C115 cartridges is designed for the smallest work. It handles 0402 and 0201 components, complex flying wires, tiny test pads, and delicate multi-layer board repairs.
Included: 1x T115 handle + 3x C115 cartridges (I, IS, K tips)
Choose T115 if you: → Do specialised micro-soldering under magnification → Work on phone board component-level repair → Need minimal thermal footprint → Handle ultra-fine circuits regularly

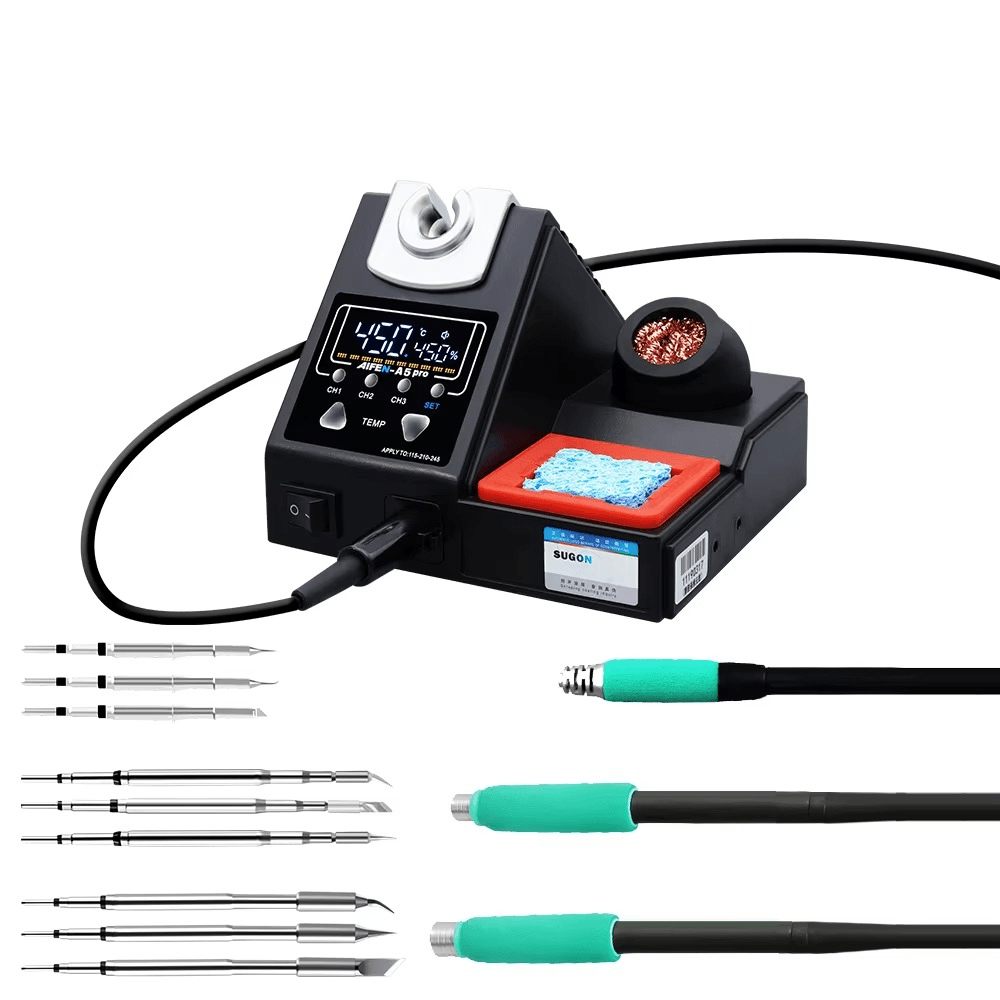

AIFEN A5 Pro Complete Kit (All 3 Handles)
Best for: Professional workshops, varied repair work, maximum flexibility
Get all three handle systems in one package. Switch between micro-precision, SMD work, and heavy-duty soldering without limitations. One base station, complete capability.
Included:
| Handle | Cartridges |
|---|---|
| 1x T115 handle | 3x C115 cartridges (I, IS, K tips) |
| 1x T210 handle | 3x C210 cartridges (I, IS, K tips) |
| 1x T245 handle | 3x C245 cartridges (I, IS, K tips) |
Total: 3 handles + 9 cartridge tips
Choose the complete kit if you: → Handle varied repair work daily → Want maximum flexibility from day one → Run a professional workshop → Don’t want to purchase handles separately later
Quick Selection Guide
| Configuration | Handles | Tips | Primary Use |
|---|---|---|---|
| T245 | 1 | 3 | General bench, consoles, motherboards |
| T210 | 1 | 3 | Phone repair, SMD work |
| T115 | 1 | 3 | Microscope work, ultra-fine circuits |
| Complete Kit | 3 | 9 | All of the above—maximum flexibility |
Interchangeable Handles
All handles work with the same AIFEN A5 Pro base station. Simply unplug one handle and connect another—the station recognises the change automatically.
This means:
→ Start with one handle, expand later → Switch handles based on the task at hand → No need for multiple stations → Build your toolkit over time
Whether you buy a single-handle configuration now and add more later, or get the complete kit from the start, you’re using the same professional base station.
Auto-Sleep Protection
The handle includes a dormant metal ring. Place it in the stand and the station enters sleep mode immediately—no delay.
What auto-sleep delivers:
→ Instant activation when holstered → Reduced tip oxidation during idle → Extended cartridge lifespan → Energy savings → Immediate wake-up when lifted (~2 seconds)
Lift the handle and working temperature returns almost instantly. Protection without waiting.
Temperature Calibration Function
Cartridges wear. Temperature readings drift. The AIFEN A5 Pro includes built-in calibration:
- Measure actual tip temperature with a thermometer
- Access the calibration menu
- Enter the correct value
- Station adjusts automatically
Recalibrate when: → Installing new cartridges → Readings seem inaccurate → Cartridges show wear → Periodic verification checks
Maintain professional accuracy throughout your station’s life without external service.
Short-Circuit Protection
Mechanical short-circuit protection monitors the system continuously. If a short occurs:
→ Station stops running immediately → Internal components protected → No damage to the machine → Resume work after clearing the fault
Essential protection for the station itself—especially valuable in busy workshops.

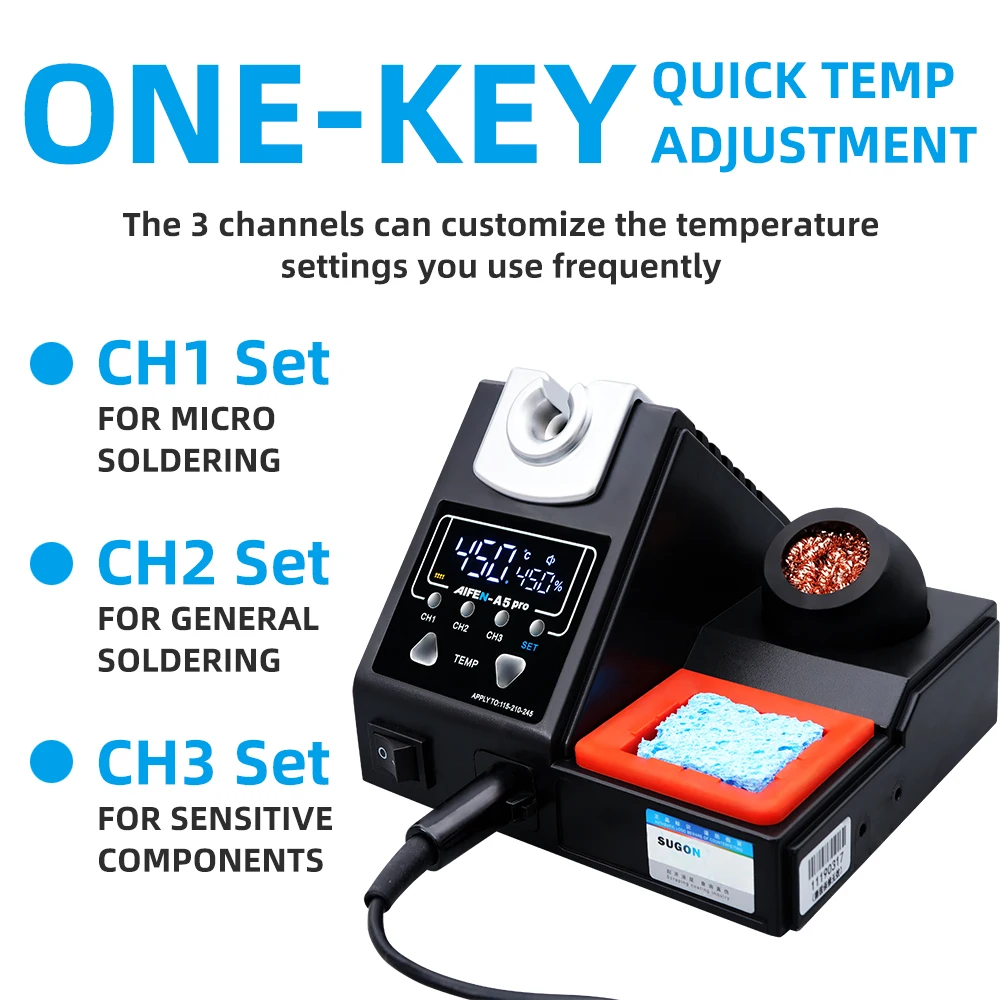

Three Memory Channels
Store your preferred temperatures and recall instantly:
| Action | Function |
|---|---|
| Short press | Recall stored preset |
| Long press | Store current temperature |
Example setup:
| Channel | Temperature | Application |
|---|---|---|
| CH1 | 320°C | Leaded solder work |
| CH2 | 365°C | Lead-free soldering |
| CH3 | 380°C | Ground planes, thermal pads |
Switch between tasks without manual adjustment every time.
Four Standby Temperature Options
When the handle rests in the stand, choose your standby behaviour:
| Setting | Behaviour | Best For |
|---|---|---|
| 0°C | Completely off | End of session, maximum tip protection |
| 150°C | Low standby | Extended breaks |
| 180°C | Medium standby | Balanced protection and speed |
| 200°C | High standby | Frequent use, fastest wake-up |
Lower settings extend cartridge life. Higher settings mean faster return to working temperature.
Included Cartridge Tips
Each handle comes with three cartridge tips in shapes suited to different tasks:
| Tip | Shape | Best For |
|---|---|---|
| I Tip | Chisel/Cutter | Drag soldering, larger joints, maximum heat transfer |
| IS Tip | Small Chisel | Medium joints, general-purpose, tighter access |
| K Tip | Pointed/Conical | Tiny joints, flying wires, precision between pins |
Single-handle configurations: 3 tips in matching cartridge size Complete kit: 9 tips total (3 per handle size)
What You Can Repair and Build
Phone Repair (T210 or T115) Precision work on phone boards with real-time temperature feedback. Watch power draw during challenging joints. Know exactly when thermal recovery completes.
Console Repairs (T245) Replace HDMI ports on PlayStation and Xbox. Reflow APU connections. The 120W power handles large ground connections without temperature sag.
Mixed Repair Work (Complete Kit) Whatever comes through the door—phones, laptops, consoles, appliances—swap handles and you’re ready. No job outside your capability.
Arduino and Maker Projects (Any configuration) Build ESP32 circuits, LED controllers, and custom PCBs. Memory presets store settings for different components and solder types.
Custom Keyboards (T245 or T210) Solder switches quickly with consistent heat. The fast thermal recovery keeps up with high-volume switch installation.
Professional Workshops (Complete Kit) Handle any repair that comes in. Train apprentices on different techniques. One station covers your entire operation.

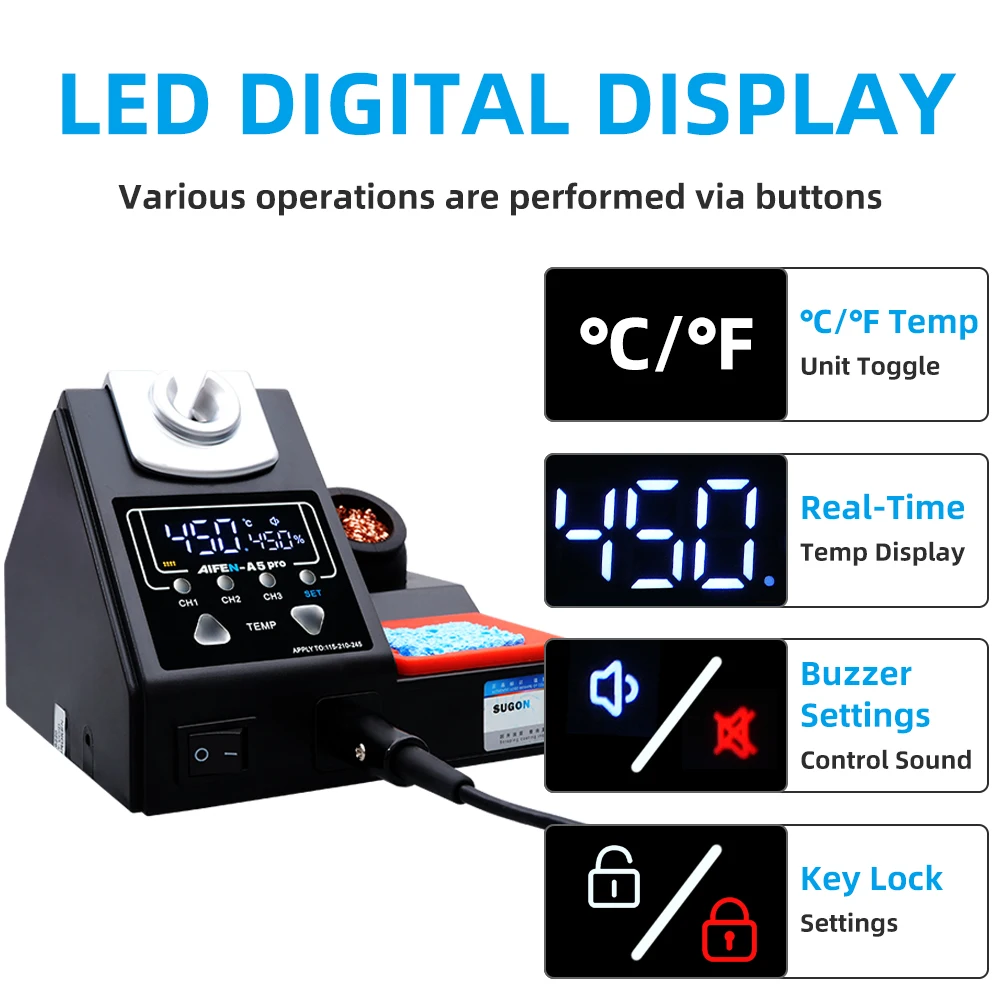

Additional Features
Celsius/Fahrenheit Conversion Switch display units to match your preference or regional guides.
Key Lock Function Lock temperature settings to prevent accidental changes. Essential in shared workshops.
Buzzer Control Enable or disable audio feedback based on your preference.
Heating Off Function Disable heating when needed for safety or storage.
Universal Voltage 110V–240V compatibility. Works worldwide with UK power.
Technical Specifications
| Specification | Value |
|---|---|
| Model | AIFEN A5 Pro |
| Power Output | 120W |
| Input Voltage | AC 110V – 240V (Universal) |
| Frequency | 50-60Hz |

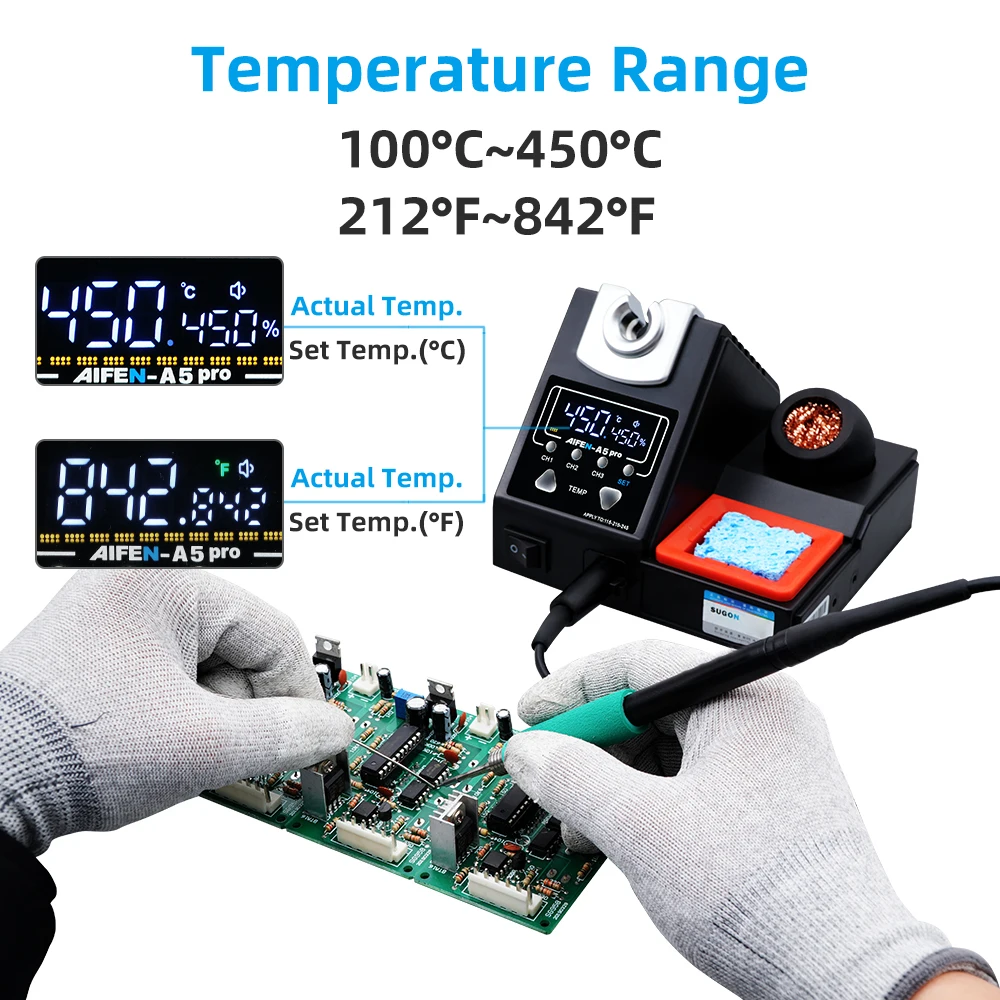

| Temperature Range | 100°C – 450°C (212°F – 842°F) |
| Temperature Control | Program chip with real-time compensation |
| Display | LCD (temperature, heating %, power bar) |
| Memory Presets | 3 channels |
| Standby Temperatures | 4 options (0°C, 150°C, 180°C, 200°C) |
| Heat-Up Time | ~2 seconds |
| Protection | Mechanical short-circuit |
| Auto-Sleep | Metal ring detection |
| Compatible Cartridges | JBC-style C115, C210, C245 |
| Handle Compatibility | T115, T210, T245 (interchangeable) |
What’s in the Box
Single-Handle Configurations (T115, T210, or T245):
| Quantity | Item |
|---|---|
| 1x | AIFEN A5 Pro base station |
| 1x | Handle (as selected) |
| 3x | Soldering cartridges (I, IS, K tips) |
| 1x | Handle stand with sleep sensor |
| 1x | Power cable |
| 1x | User manual |
Complete Kit (All 3 Handles):
| Quantity | Item |
|---|---|
| 1x | AIFEN A5 Pro base station |
| 1x | T115 handle |
| 1x | T210 handle |
| 1x | T245 handle |
| 3x | C115 cartridges (I, IS, K tips) |
| 3x | C210 cartridges (I, IS, K tips) |
| 3x | C245 cartridges (I, IS, K tips) |
| 1x | Handle stand with sleep sensor |
| 1x | Power cable |
| 1x | User manual |
Cartridge Compatibility
The AIFEN A5 Pro works with JBC-style cartridges:
| Handle | Compatible Cartridges |
|---|---|
| T115 | C115 series |
| T210 | C210 series |
| T245 | C245 series |
Most third-party and genuine JBC cartridges fit without issues. The C115 system has more compatibility variations between manufacturers—verify before purchasing replacements.
Ideal For
| User | Why A5 Pro Works |
|---|---|
| Beginners | Clear LCD feedback helps learning |
| Phone repair techs | Fast heat-up, precision control |
| Console repair | 120W handles demanding joints |
| Hobbyists upgrading | JBC performance without JBC price |
| Professional workshops | Complete kit covers all work |
What Makers Are Saying
“The LCD display showing heating percentage is brilliant for learning. I can see exactly when thermal recovery happens and understand why some joints are harder than others. Started with T210, added T245 later—same base station handles both perfectly.”
“Went straight for the complete kit. Having all three handles means I never turn away work. Phone repair in the morning, console HDMI ports in the afternoon—just swap handles and go. Best investment for my repair business.”
