Power through ground-plane joints without losing your set temperature.
The YIHUA 939D+ IV Soldering Station pairs a 90W heating core with digital control, so temperature recovers in under 3 seconds under heavy load instead of drifting mid-joint. Built for SOP, DIP, and SOIC soldering and desoldering, where a standard 40-60W iron struggles.
Top Features
- 90W High-Power Core: Fast recovery and even heat penetration cut down on cold joints.

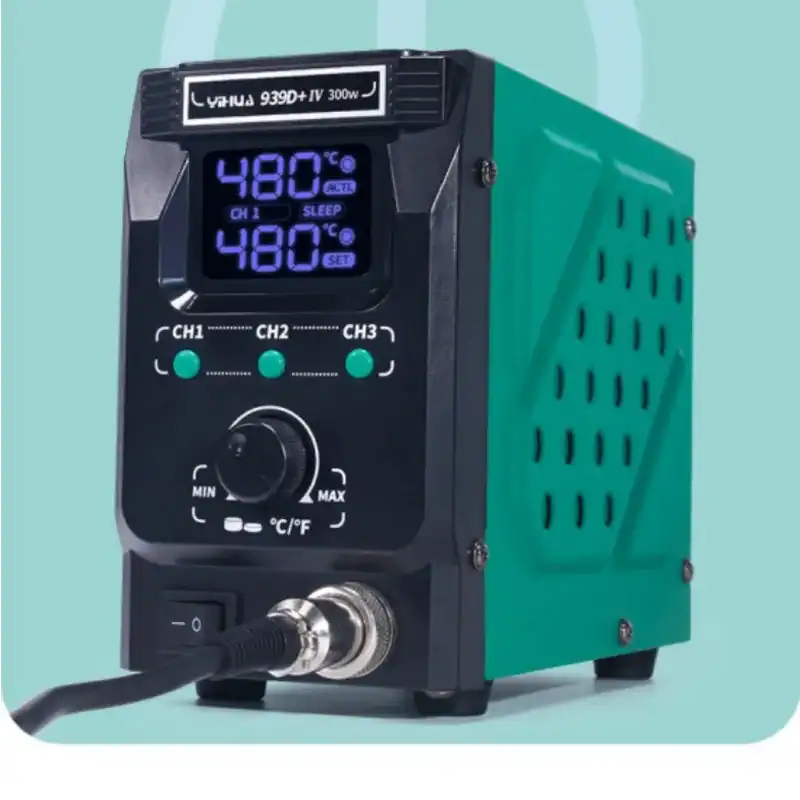

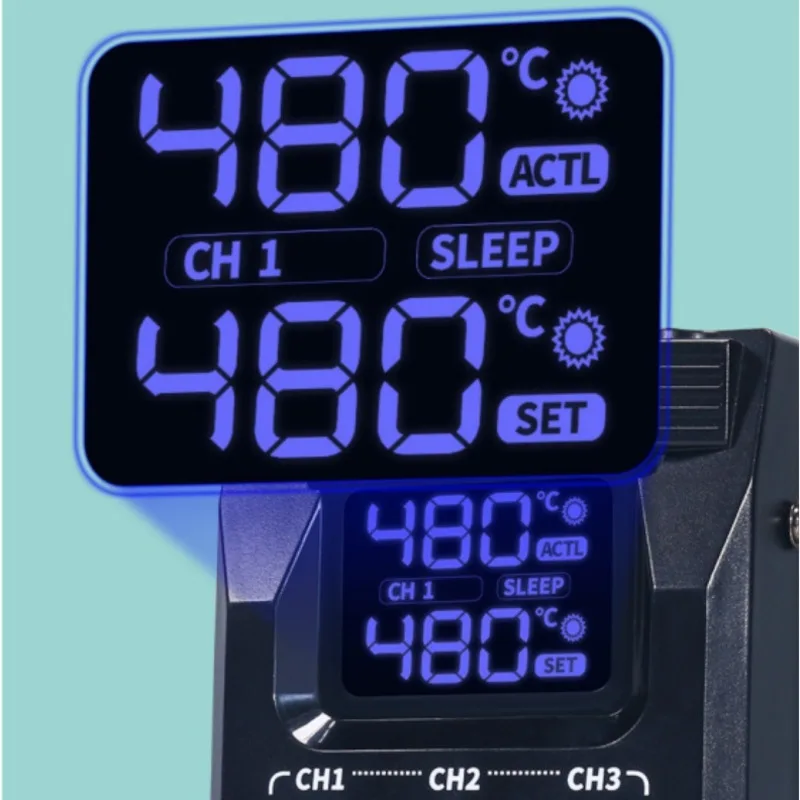

- Dual-Readout LCD: Set and actual temperature shown side by side, with °C/°F conversion.
- 3-Stage Memory: Store your go-to temperatures and switch between them instantly.

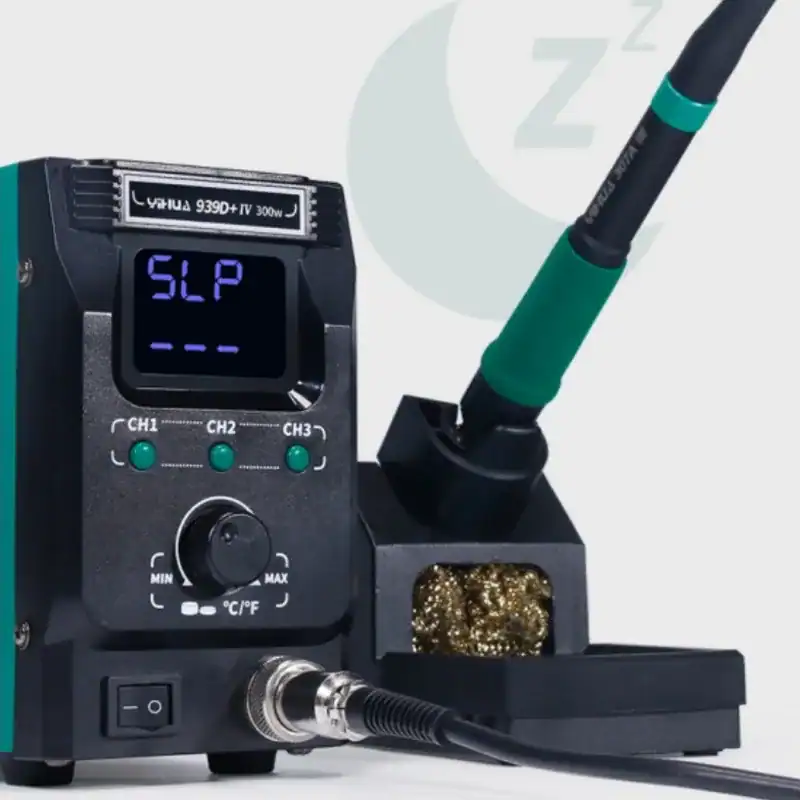

- Smart Sleep with Shake-to-Wake: Sleeps after 0/5/10/30 minutes idle, wakes with a gentle shake of the handle.

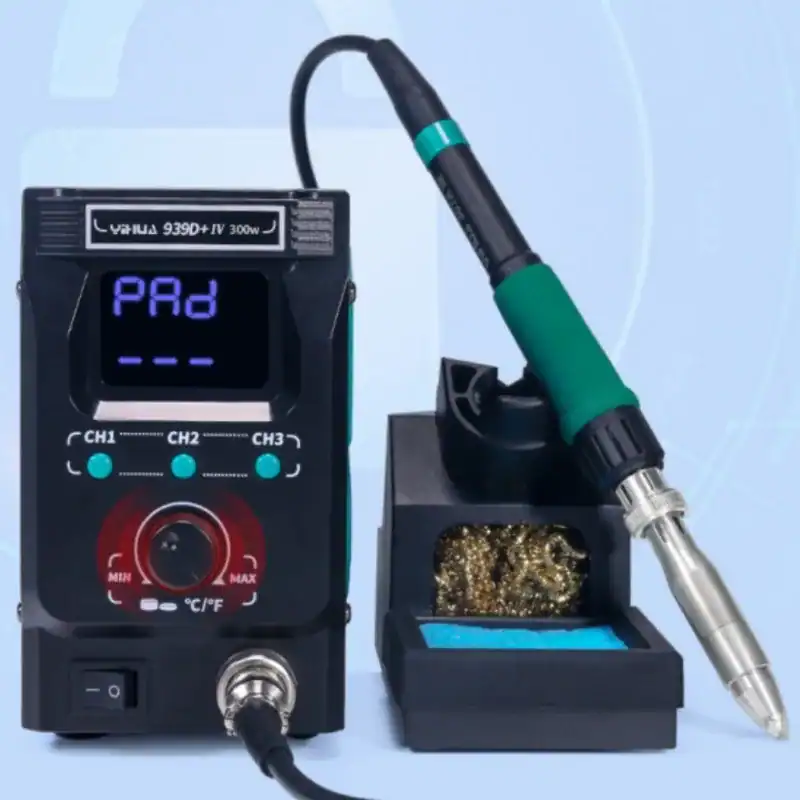

- Password-Locked Settings: Stop temperature settings getting knocked out of place on a shared bench.
Details & Specs
| Specification | Details |
|---|---|
| Model | YIHUA 939D+ IV (90W) |
| Dimensions | L150 × W136 × H93mm (±5mm) |
| What’s in the Box | 939D+ IV station, iron handle, multi-function stand with heat-resistant Bakelite base, built-in sponge cleaner and solder wire holder, instruction manual. |
| Other | Voltage: 110–240V~, 50–60Hz; Power: 22W idle, 120W max; Temperature range: 200–480°C (392–896°F); Recovery: <3 seconds under heavy load; Auto-shutdown: 0–99 minutes; Tip-to-ground resistance: <2Ω; Compatible tips: 902 series. |
Suited to industrial-style soldering on connectors, heat sinks, and power modules, as well as precision repairs on BGA rework and multi-layer PCBs where a weaker iron would need multiple passes to get a joint properly wetted.
