Restore delicate electronics with pinpoint precision and speed using the YIHUA 853AAA‑I’s PID‑controlled 3‑in‑1 rework system.

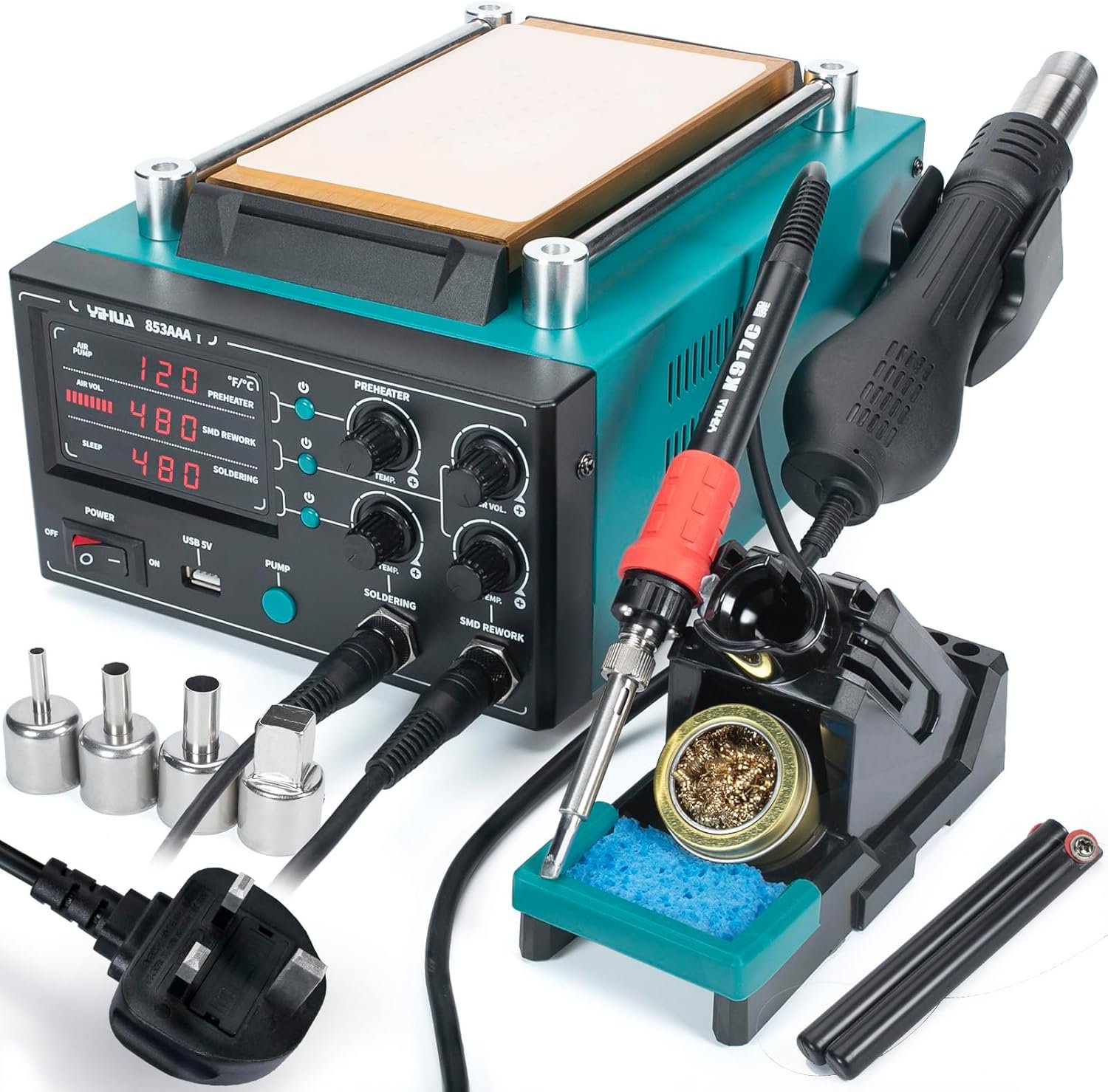

Bring professional‑grade rework to your bench: the YIHUA 853AAA‑I Rework Station with PID combines a hot air gun, preheating platform, and soldering iron into one compact, powerful unit—so you can tackle everything from fine‑pitch SMD to BGA reballing without switching tools.
Top Features
- PID Temperature Control: Maintains heat within ± 1–2 °C for rock‑steady performance on every task.
- 3‑in‑1 Versatility: Hot air gun, soldering iron & preheater all in one station—no extra equipment needed.
- Wide Temperature Ranges:
- Hot Air: 100 – 480 °C
- Preheater: 50 – 200 °C
- Iron: 200 – 480 °C
- Rapid Heat‑Up: Reach your set temperature in under 60 seconds—minimizing downtime.
- Smart Protection: Built‑in over‑temp, short‑circuit, and overload detection plus auto‑sleep/standby modes to extend tip life.
- ESD‑Safe Design: < 2 Ω tip‑to‑ground resistance shields sensitive components from static damage.
Details & Specs
| Specification | Details |
|---|---|
| Dimensions | 275 × 195 × 130 mm (W × D × H) |
| Materials | Metal chassis, ceramic heating elements, high‑temp plastic housing |
| Weight | 5.6 kg |
| Care Instructions | Clean tool heads on the supplied sponge; tin soldering tips before storage; keep air intake clear; power off when idle |
| Other | 220–240 V AC, 50 Hz; 1180 W total power; Preheater area: 200 × 110 mm; Includes hot air nozzles and soldering iron tips |
Born from a passion to make high‑precision rework accessible to hobbyists and pros alike, the 853AAA‑I empowers you to revive circuit boards, repair BGA arrays, and customize electronics with confidence—every joint perfect, every time.

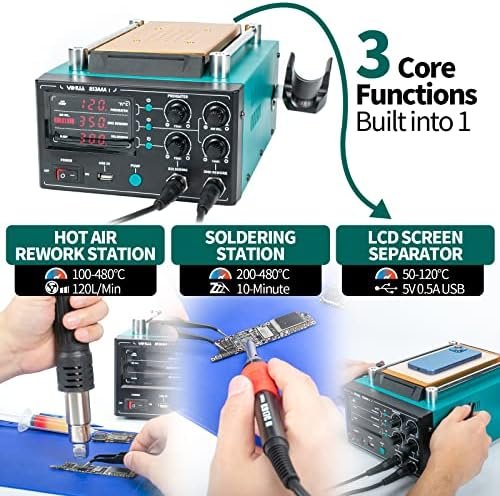

The YIHUA 853AAA-I combines soldering station, hot air station and LCD screen separator into one. If you’re in the phone repair business, this is the right station for you! You can save the space of having three tools on your work bench while having all three functionalities.

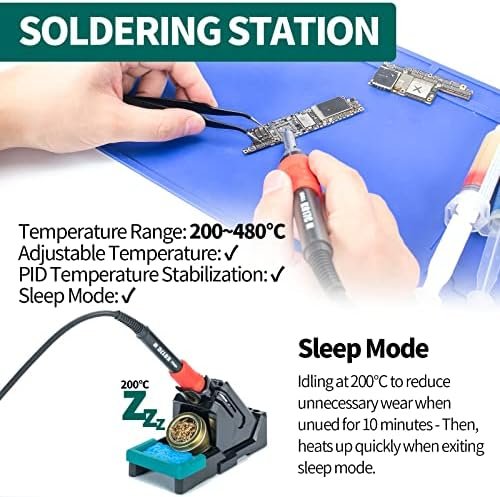

Soldering Station (110W)
- Adjustable Temperature: 200~480°C
- PID Temperature Control: ✔
- Sleep Mode: ✔
- Automatic Shutdown: ✔
- Temperature Calibration: ✔

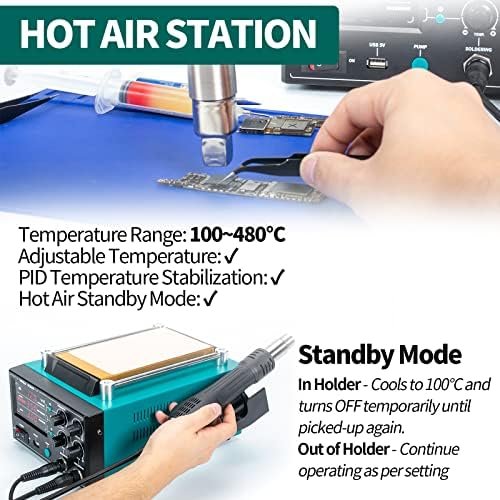

Hot Air Station
- Adjustable Temperature: 200~480°C
- Adjustable Air Volume: 1~99 (simulated)
- PID Temperature Control: ✔
- Standby Mode: ✔
- Temperature Calibration: ✔

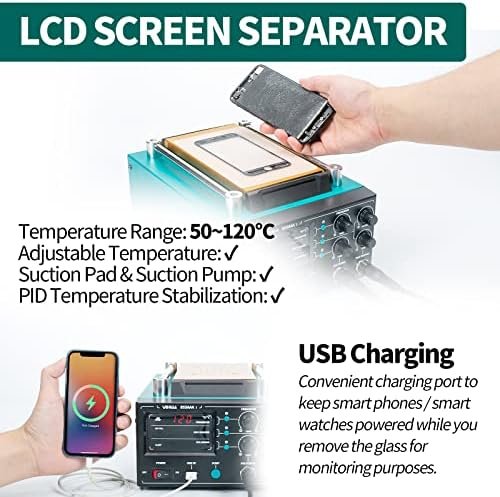

LCD Screen Separator
- Heating Plate Size: 11cm x 20cm
- Adjustable Temperature: 50℃～120℃

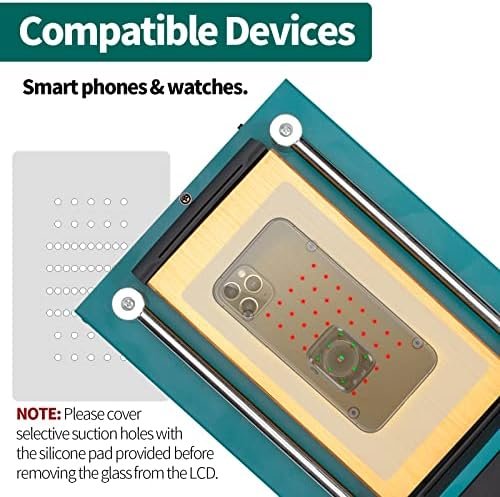

- Silicone Pad: for Phones & Smart Watches LCD
- Suction Function: ✔
- PID Temperature Control: ✔
Dust Cover
The heating panel comes with a dust cover, preventing dusts from entering the heating panel’s circuitry.
5V USB Port
You can power the device while removing the LCD’s glass to keep monitoring the device’s screen status.
Individual Controls
You can change parameters for all three tools with their individual controls (buttons + control knobs). Use them all at once, or use only one at a time.
Sleep Mode
This station comes with a 10 minutes sleep mode function that can extend the lifespan of the consumable parts such as heating elements and conserve energy.
Automatic Shutdown
After entering sleep mode, automatically shuts down after 30 minutes of further non-use. This protects the user from leaving the station turned on unattended for a long period of time.
Hot Air Standby Mode
When you put the hot air gun in the holder, the temperature will automatically cool down to below 100°C. And when you pick it up, it will automatically heat up to the set temperature. This feature can extend the lifespan to make the heating element last longer, improves safety factors while heating efficiently without affecting normal operations.
Specifications
Model YIHUA 853AAA-I Voltage 220V-240V Rated Frequency 50Hz Rated Power 1180W Size L275xW195xH130mm ±5mm Temperature Display Nixie LED Hot Air Station : Temperature Range 100℃～480°C/212°F～896°F Air Delivery Brushless blower with smooth air delivery Output Air Volume ≤120L/min Soldering Station : Temperature Range 200℃～480°C/392°F～896°F Tip to Ground Resistance ＜2 ohms Screen Separator : Temperature Range 50℃～120℃/122°F～248°F Heater Surface Area 200X110mm 土5mm
Product information
Technical Details
Manufacturer Guangzhou Yihua Electronic Equipment Co.,Ltd. Part Number YIHUA 853AAA-I Product Dimensions 27.5 x 19.5 x 13 cm; 3.82 kg Item model number YIHUA 853AAA-I Material Glass Power Source AC Wattage 110 watts Included Components Switch Batteries Required? No Item Weight 3.82 kg
