939D+ III EVO Soldering Station with X2 Storage System
Tired of a cluttered workbench with your iron stand, tip cleaner, spare tips, and solder reel scattered everywhere? The YIHUA 939D+ III EVO brings everything together—a precision PID-controlled soldering station with an integrated storage system that organises your entire workflow in one stable unit.
Whether you’re repairing game consoles, building Arduino projects, or working through a stack of PCB repairs, this station keeps your tools within reach and your temperatures locked in. Four memory channels let you switch between jobs instantly. The dual LCD display shows exactly what’s happening at your tip.
At a Glance
| Performance | Convenience |
|---|---|
| 200°C – 480°C temperature range | 4 memory channel presets |
| PID control with millisecond compensation | Dual LCD display (set + actual temp) |
| 220W maximum power | X2 integrated storage system |
| ESD-safe (< 2Ω tip-to-ground) | Helping hands + LED magnifier |
| Quick-heating element | Sleep mode for tip protection |
✓ Soldering and desoldering operations ✓ Surface-mount and through-hole components ✓ SOP, DIP, SOIC, and more ✓ UK plug with 230V rating
The X2 Storage System
Most soldering stations come with flimsy wire stands that tip over, separate sponge holders that slide around, and no place for spare tips or your solder reel.
The X2 system integrates everything into one stable unit:
| Component | Benefit |
|---|---|
| Stable iron holster | Weighted base won’t tip—even with cable pull |
| Cleaning station | Brass wool or sponge always within reach |
| Residual tray | Catches solder splashes and flux debris |
| Tip storage slots | Keep spare tips organised and accessible |
| Solder wire dispenser | Feed solder smoothly without hunting for the reel |
One unit. Everything you need. No clutter.
Four Memory Channels
Stop adjusting temperature every time you switch tasks. Store four presets and recall any with a single button press.
| Channel | Example Use | Temperature |
|---|---|---|
| CH1 | Large solder joints, ground planes | 380°C |
| CH2 | General-purpose soldering | 350°C |
| CH3 | Temperature-sensitive boards | 330°C |
| CH4 | Wire splicing, heavy leads | 400°C |
Working on a board with mixed requirements? Switch channels instantly. No menus. No scrolling. Just press and go.
Temperature examples for reference—use your preferred settings for each application.
PID Control That Actually Works
Basic soldering irons cycle heat on and off. Temperature swings. Joints suffer.
The YIHUA 939D+ III EVO uses PID temperature stabilisation with compensation every millisecond. The system monitors tip temperature continuously and adjusts power in real time.
Set 350°C → Get 350°C
Even when you’re working on large pads, ground planes, or components that sink heat away from your tip. The quick-heating element recovers fast. Your workflow stays smooth.

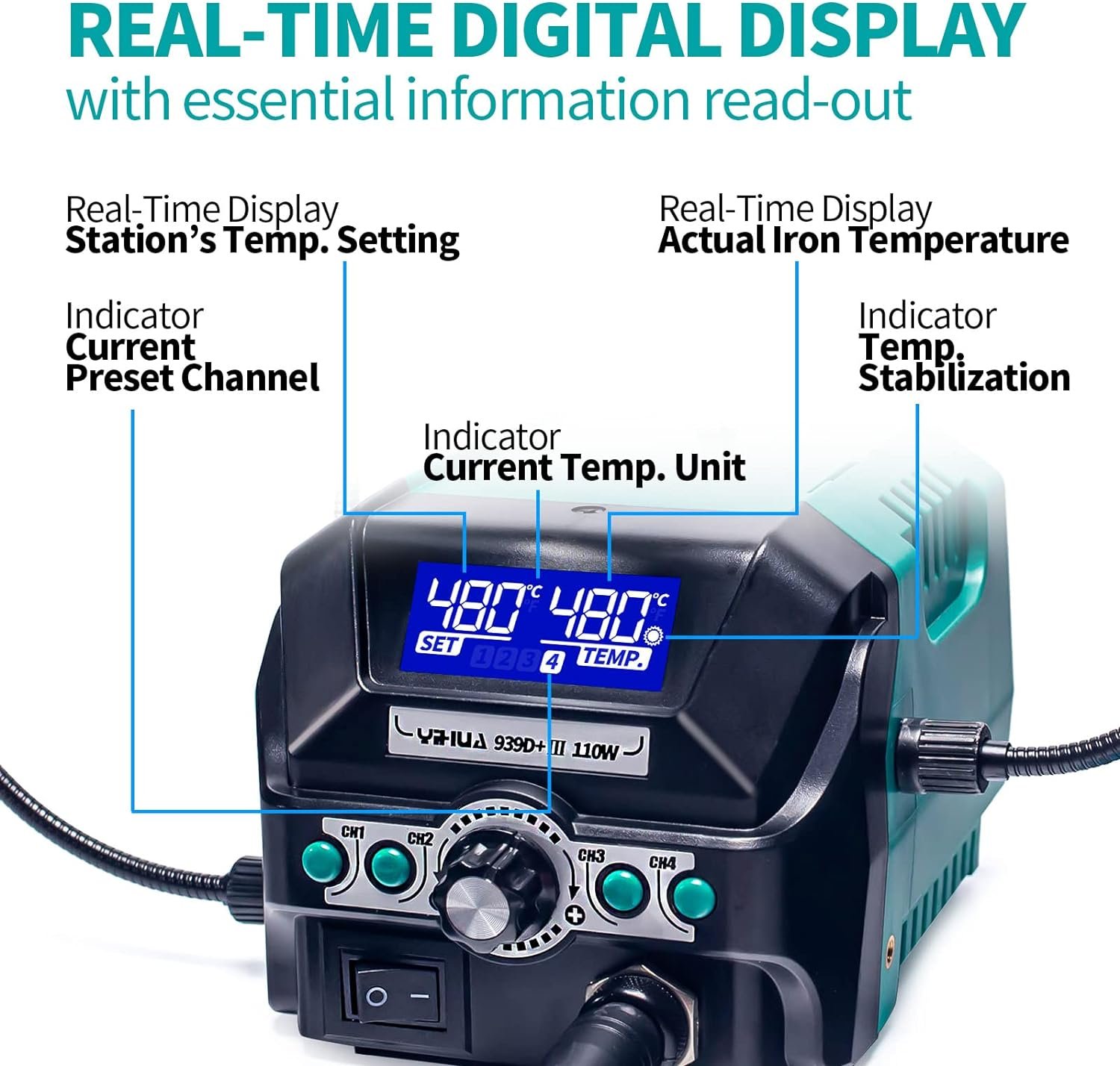

See Both Temperatures—Always
The dual LCD display shows two readings simultaneously:
→ Set Temperature: What you’ve dialled in → Actual Temperature: What’s happening at the tip right now
Watch heat-up in real time. See thermal recovery after touching cold joints. Spot any drift immediately. No guessing whether your iron is actually ready.
Built-In Helping Hands + LED Magnifier
Complex repairs need a third hand. The 939D+ III EVO includes:
Two helping hands — Adjustable clips hold boards, wires, and components exactly where you need them.
LED-lit magnifier — Illuminate and enlarge your work area for fine-pitch components, small text, and detailed inspection.
No separate stands cluttering your bench. No hunting for your magnifier. Everything integrated, everything ready.
What You Can Repair and Build
Console Repairs Fix joystick drift on PlayStation and Xbox controllers. Replace HDMI ports. Swap capacitors on original Xbox and PlayStation boards.
Arduino and Maker Projects Build ESP32 circuits, LED controllers, and custom PCBs. The memory presets let you dial in settings for different components and solder types.
Keyboard Builds Solder switches with consistent heat. Install hot-swap sockets. Work through entire builds without temperature adjustments.
Phone and Tablet Repairs Replace charging ports, battery connectors, and buttons. The ESD-safe design protects sensitive components.
Vintage Electronics Restore classic computers and gaming hardware. Replace ageing capacitors. Repair corroded connections.
Digital Calibration
Tips wear. Temperature readings drift. The 939D+ III EVO lets you correct it.
- Measure actual tip temperature with a calibration thermometer
- Enter the value in the calibration menu
- Station adjusts automatically
No sending units back for service. No living with inaccurate readings. Professional accuracy maintained throughout your station’s life.
Sleep Mode Protection
Leave the iron in the holder and temperature drops automatically. Reduced heat means:
→ Less tip oxidation → Longer heating element life → Lower energy consumption → Safer workspace
Pick up the iron and working temperature returns in seconds. Protection without inconvenience.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 939D+ III EVO |
| Input Voltage | 220-240V AC, 50Hz |
| Maximum Power | 220W |
| Rated Power | 22W |
| Temperature Range | 200°C – 480°C (392°F – 896°F) |
| Temperature Control | PID (millisecond compensation) |
| Temperature Display | Dual LCD (set + actual) |
| Memory Channels | 4 presets |
| Tip-to-Ground Resistance | < 2Ω (ESD-safe) |
| Dimensions | 168 × 128 × 185mm |
| Weight | 2.5kg |
| Operating Temperature | 0°C – 40°C |
| Compatible Tips | YIHUA 902 series (#1400) |
What’s in the Box
| Quantity | Item |
|---|---|
| 1x | YIHUA 939D+ III EVO station unit |
| 1x | Soldering iron with handle |
| 1x | X2 storage system with holder |
| 1x | Helping hands (2 clips) |
| 1x | LED magnifier |
| 1x | Cleaning tools |
| 1x | UK power cord |
| 1x | User manual |
Replacement Tips
This station uses YIHUA 902 series soldering iron tips (#1400). Multiple tip shapes available for different applications—conical, chisel, knife, and specialty profiles. Stock up on your preferred geometries for faster tip changes during varied work.
12-Month UK Warranty
Every YIHUA 939D+ III EVO is backed by 12-month UK-exclusive manufacturer warranty. Our team provides professional technical assistance 24/7. Questions, issues, or suggestions? We’re here to help.
Product rated for 230V with UK power plug.
What Makers Are Saying
“The X2 storage system is what sold me. Everything in one place—no more hunting for my solder reel or knocking over a flimsy stand. The four presets are brilliant for switching between different jobs.”
“Upgraded from a basic temperature-controlled iron. The dual display showing actual vs set temperature is a game changer. I can see exactly what’s happening and my joints are so much more consistent now.”
