Confident SMD rework without the bench-hogging price tag.

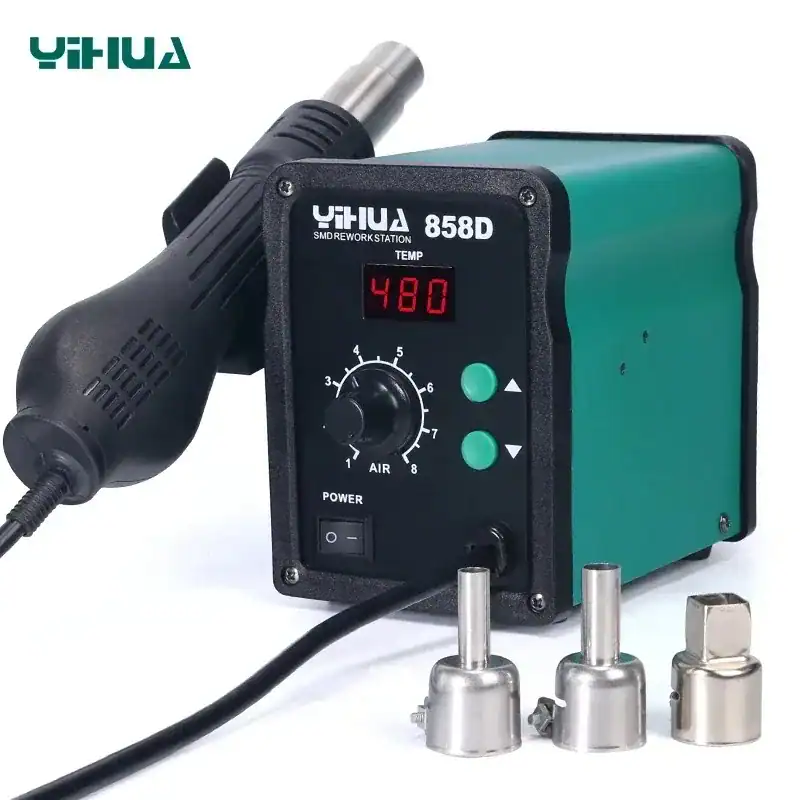

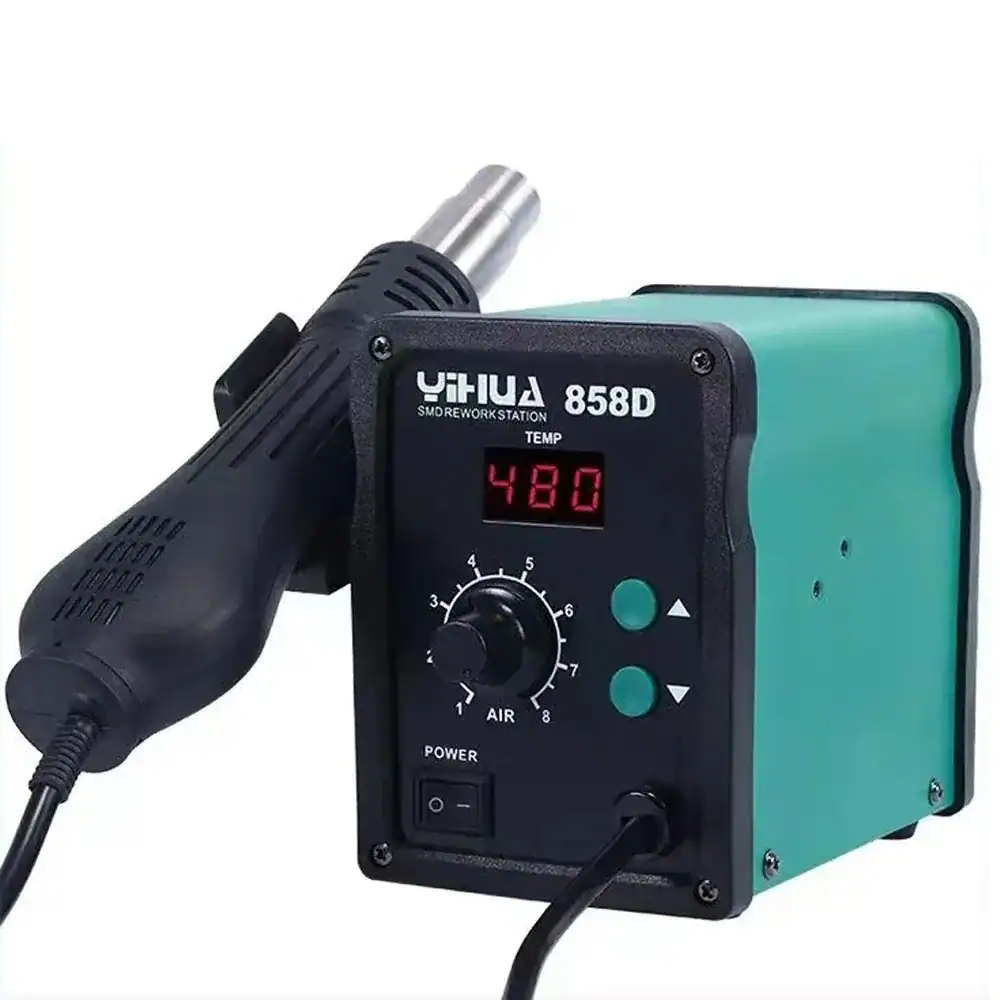

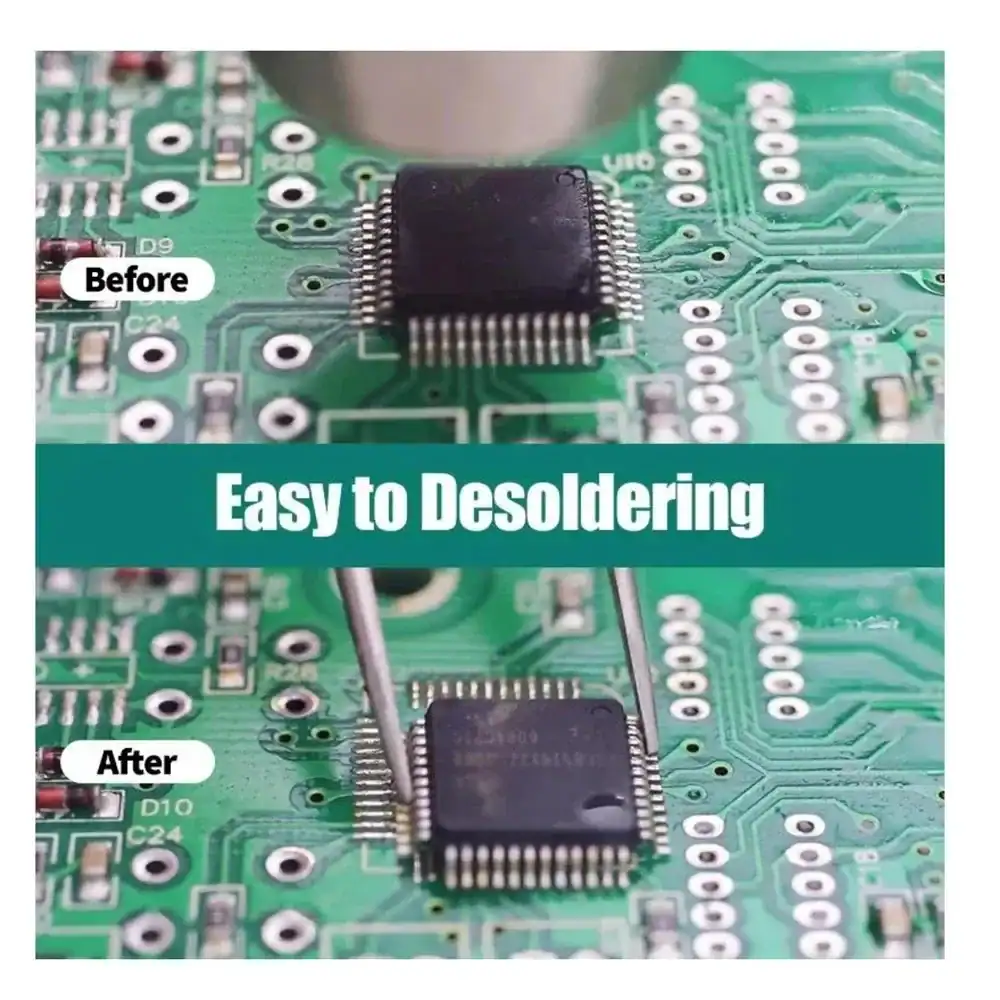

The YIHUA 858D Hot Air Rework Station brings 700W of PID-controlled hot air to desoldering multi-pin ICs, reflow work, and general board-level repairs, in a compact unit built for hobbyists and technicians who don’t need a full production rework system.
Top Features

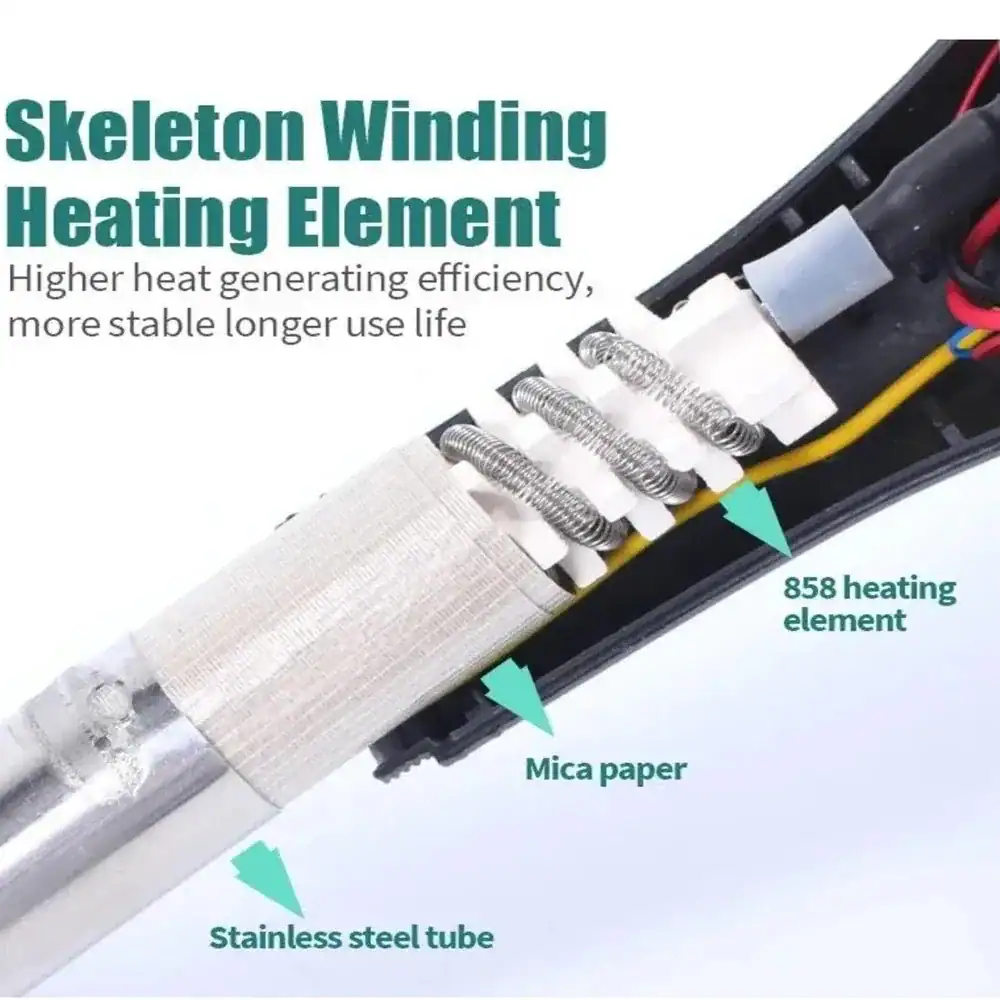

- 700W Ceramic Heating Element: Up to 120 L/min airflow for fast, even heat across larger components.
- PID Temperature Control: Microcontroller-driven compensation keeps output stable to within 1°C.
- Auto Start/Stop: A reed switch detects when the gun’s back in its holder and cools to 100°C before shutting down on its own.
- On-Board Calibration: Correct temperature drift without opening the case.
- Universal Nozzle Fit: Compatible with the full 858-series nozzle range; three are included.
Details & Specs
| Specification | Details |
|---|---|
| Model | YIHUA 858D |
| Dimensions | ≈150 × 100 × 130mm |
| Weight | ≈1.55 kg |
| What’s in the Box | 858D station, hot air gun with brushless fan, three round nozzles (5mm, 8mm, 10mm), IC extractor tool, nozzle-change spanner, UK power cord, instruction manual. |

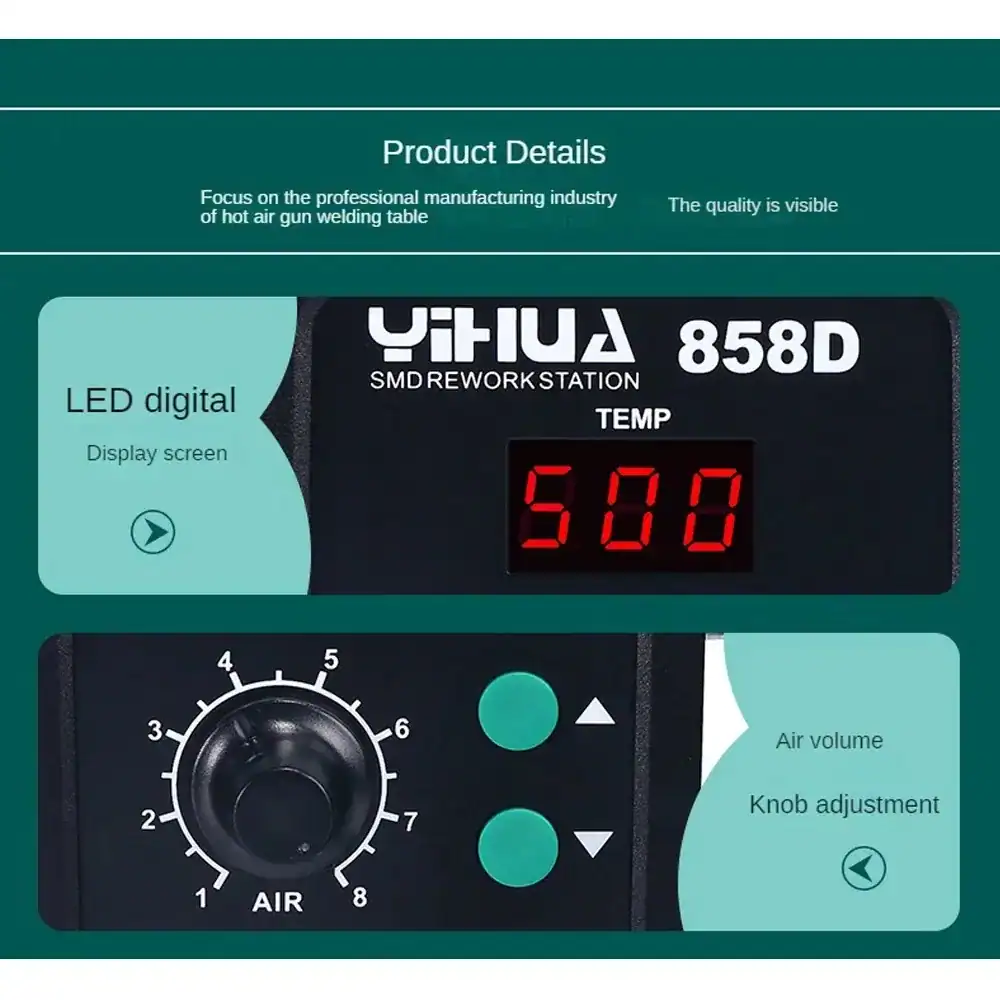

| Other | Power: 700W (230V); Temperature range: 100–500°C (212–932°F); Control: PID via onboard microcontroller; Display: 3-digit LED; Fan: brushless, handle-mounted; Cable length: ≈70cm. |
Beyond core SMD work, the 858D handles heat shrink tubing, conformal coating removal, and paint stripping, making it a versatile addition to a repair bench that doesn’t have room for a full-size rework station.
