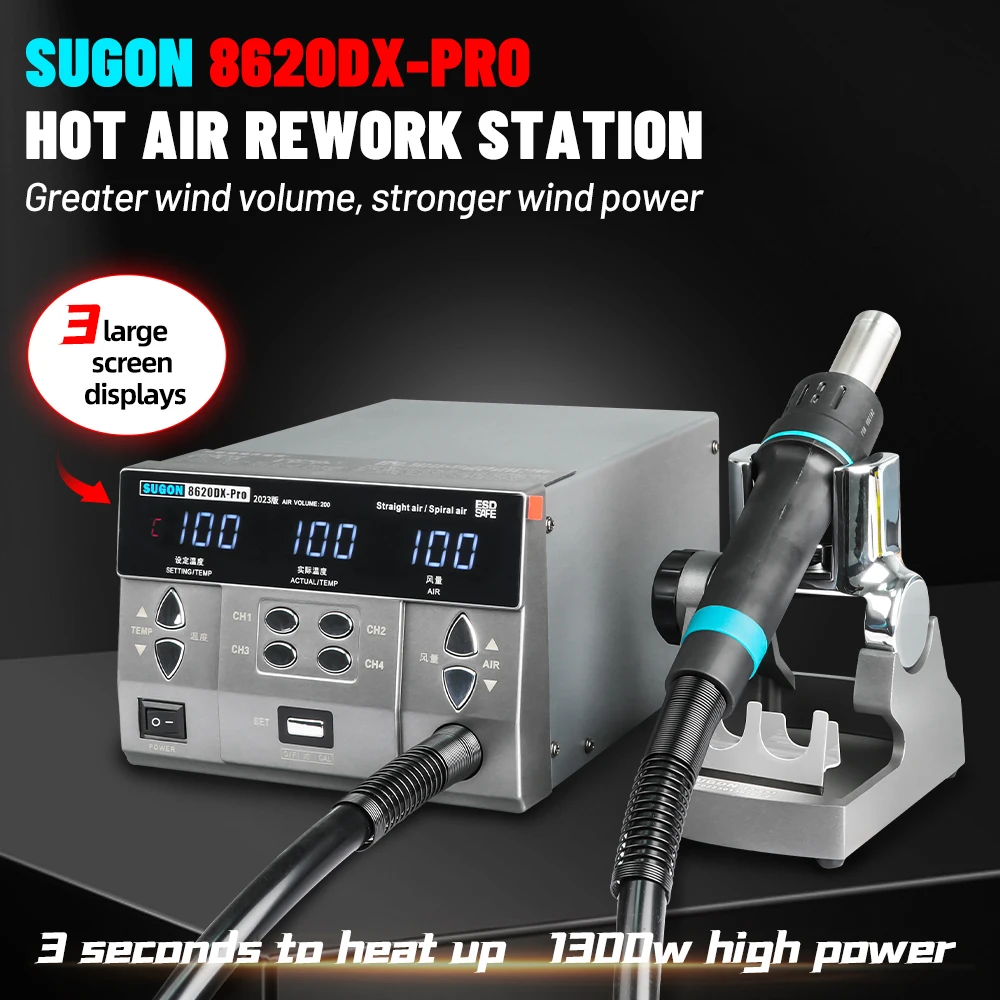

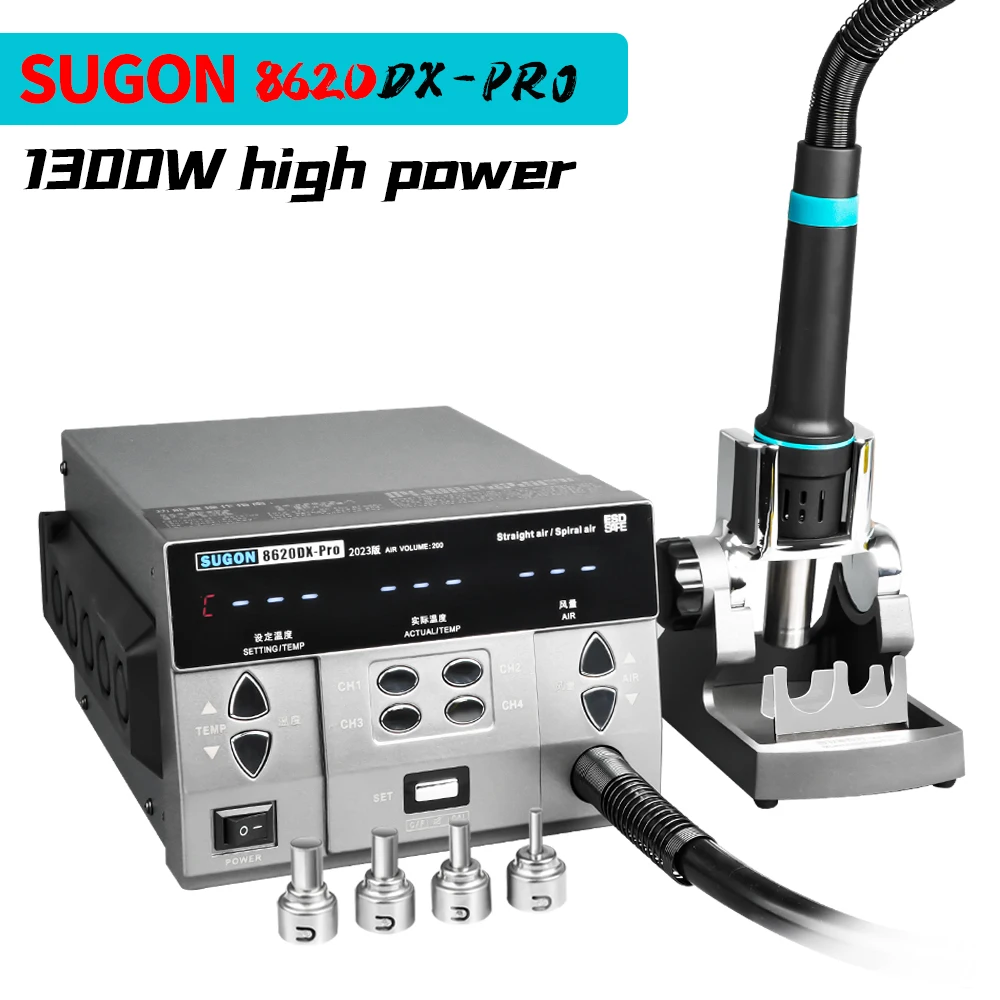

Need professional hot air power with precise microcomputer control? The SUGON 8620DX PRO delivers 1300W of heating capability with upgraded airflow control—80% more air volume adjustment than previous models. The brushless vortex fan and zero-crossing trigger temperature control keep heat consistent regardless of airflow settings.
Four memory channels store your complete temperature and airflow configurations. Magnetic switch control activates sleep mode the moment you set the handle down. This is serious BGA rework capability for repair shops handling laptops, consoles, and industrial boards.
At a Glance
| Performance | Convenience |
|---|---|
| 1300W maximum power output | 4 memory channels (CH1-CH4) |
| 100°C – 500°C temperature range | Magnetic switch auto-sleep |
| Air volume Grade 1–200 (80% upgraded) | Automatic cooling function |
| 120 L/min maximum airflow | Self-calibration function |
| Brushless vortex fan | °C/°F conversion |
✓ Microcomputer zero-crossing temperature control ✓ Temperature unaffected by airflow changes ✓ 8 nozzles included (straight, spiral, bend) ✓ Ceramic heating core included as gift ✓ Grounding wire for ESD safety ✓ Universal voltage (110V/220V)

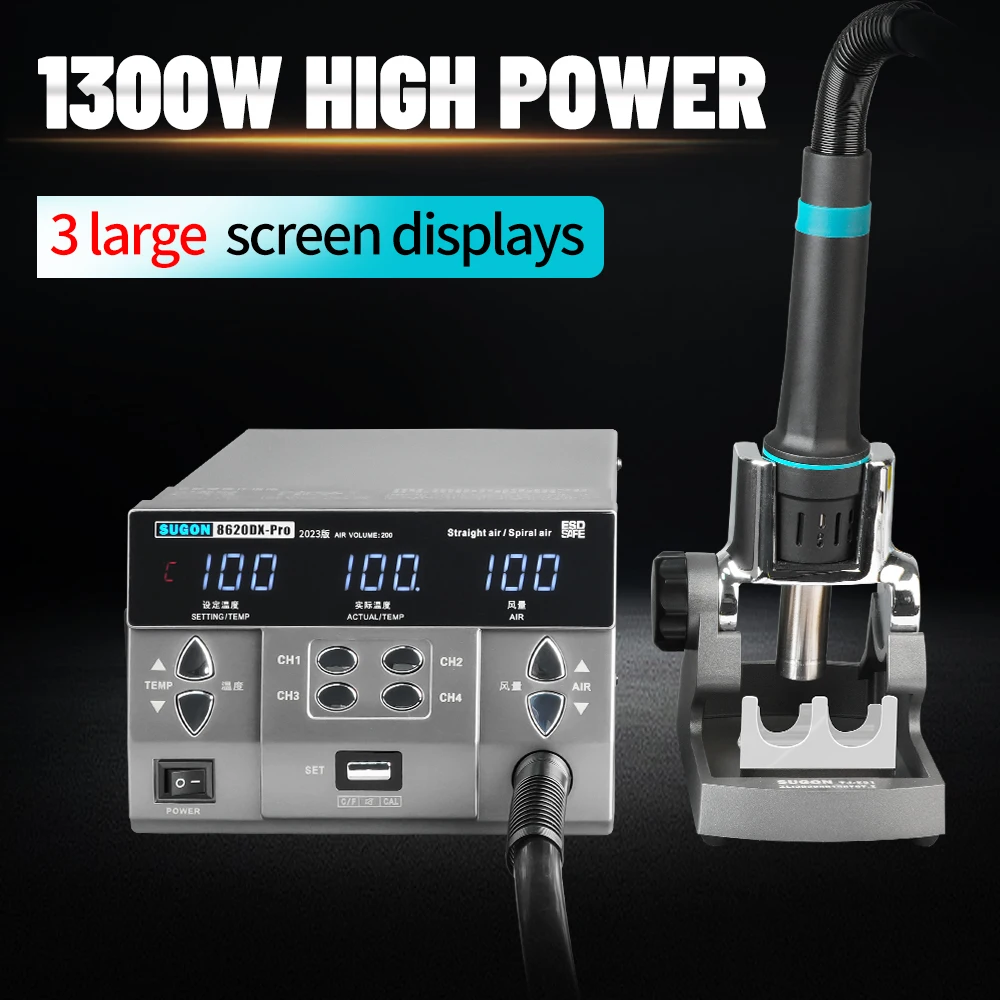

1300W Professional Power
When standard hot air stations struggle with large BGA packages and thermal mass, the SUGON 8620DX PRO keeps delivering. 1300W of heating power means:
| Challenge | 8620DX PRO Response |
|---|---|
| Large BGA packages | Sustained high-temperature airflow |
| Laptop GPU reflow | Rapid heating, no temperature sag |
| Console APU rework | Consistent heat across large dies |
| Lead-free temperatures | 500°C max with power to spare |
| High-volume repair | No thermal fatigue, all-day performance |
Professional power for professional work. The heating system handles whatever you throw at it.
Microcomputer Zero-Crossing Temperature Control
Basic hot air stations let temperature fluctuate with airflow changes. Increase air volume, temperature drops. The 8620DX PRO uses microcomputer zero-crossing trigger control to eliminate this problem.
What this technology delivers:
→ Stable temperature regardless of airflow setting → Precise adjustments within the full range → Consistent heat output throughout the task → No compensation needed when changing air volume → Accurate, stable performance for critical rework
Set 380°C at Grade 50 airflow, then increase to Grade 150—temperature stays at 380°C. The microcomputer manages power delivery to maintain your set point.

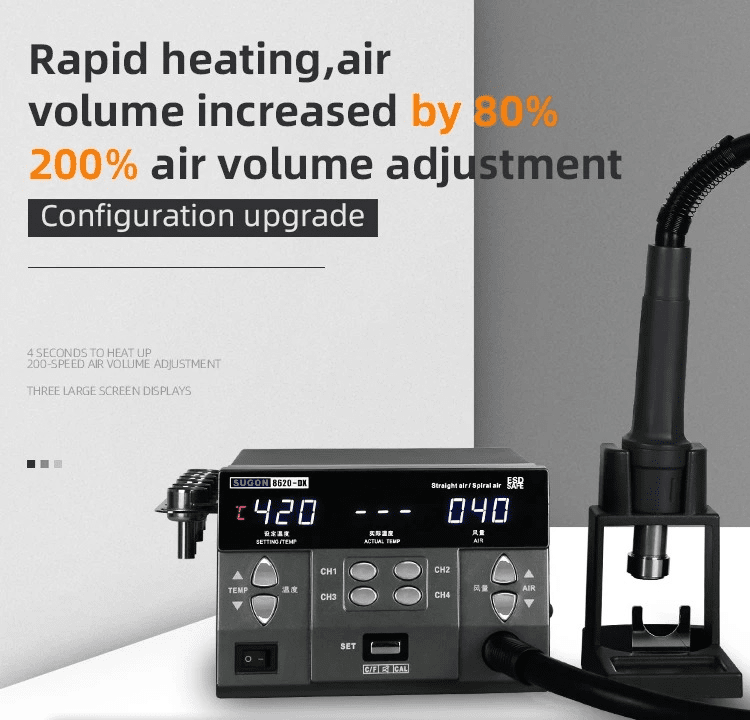

Upgraded 80% More Air Volume Control
The entire machine has been upgraded with expanded airflow capability. Air volume control now spans Grade 1 to 200—80% more adjustment range than previous models.
Low airflow (Grade 1-50): → Fine-pitch SMD components → Delicate 0402/0603 parts → Concentrated heat application → Work near sensitive areas
Medium airflow (Grade 50-120): → Standard BGA packages → General SMD rework → Balanced heat distribution → Everyday use settings
High airflow (Grade 120-200): → Large BGA packages (GPU, APU) → Rapid shield can removal → Maximum thermal transfer → Quick component extraction
Maximum airflow reaches 120 L/min for serious thermal work.
Brushless Vortex Fan
The brushless vortex fan design provides smooth, adjustable airflow across the entire range:
Advantages over standard fans:
→ Consistent air pressure at all settings → Wide adjustment range → Quieter operation → Longer lifespan → Suitable for multiple applications
Whether you need gentle airflow for delicate components or maximum blast for large packages, the brushless vortex delivers.
Four Memory Channels
Store complete configurations in CH1, CH2, CH3, and CH4. Each channel saves both temperature and air volume settings.
| Channel | Example Setup | Application |
|---|---|---|
| CH1 | 320°C / Grade 60 | Leaded SMD, delicate work |
| CH2 | 380°C / Grade 100 | Standard lead-free BGA |
| CH3 | 420°C / Grade 150 | Large BGA packages |
| CH4 | 250°C / Grade 40 | Preheating, heat shrink |
Switch between channels instantly. No manual adjustment when moving between common tasks. Your preferred configurations always ready.
Magnetic Switch Auto-Sleep
Set the handle in the stand and magnetic switch control activates sleep mode immediately. No delay, no buttons to press.
What magnetic sleep delivers:
→ Instant activation when handle is placed → Reduced temperature during idle → Extended heating element life → Energy savings → Quick wake-up when you resume
Adjust parameters in sleep state: Change settings while the station sleeps—no need to wake it first. Convenient real-time operation.
Automatic Cooling Function
The system includes automatic large air volume cooling to protect your equipment:
→ Cools heating element after use → Extends heating element lifespan → Protects hot air handle → Reduces thermal stress on components
Professional protection built into the system. Your investment lasts longer.
Temperature Self-Calibration
Maintain accuracy as the heating element ages:
To enter calibration mode: With host off, press and hold the multi-function button for 2 seconds, then turn on power switch. Use air volume +/- keys to set correction temperature. Click multi-function button to exit and enter working state.
Calibrate when: → Readings seem inaccurate → After heating element replacement → Periodic verification checks
Professional accuracy maintained throughout the station’s life.
What You Can Rework
SMD Component Work Suitable for SOIC, CHIP, QFP, PLCC, BGA, and more. The stable temperature control and adjustable airflow handle all standard SMD packages.
Laptop Motherboards GPU reflow, BGA replacement, chip removal and reballing. The 1300W power handles laptop-sized packages without temperature sag.
Gaming Consoles PlayStation and Xbox APU rework. HDMI port replacement. Southbridge reflow. Large die packages need large power.
Graphics Cards Desktop GPU reflow and replacement. Memory chip rework. Proper profiles for large packages.
Lead-Free Applications 500°C maximum temperature handles all lead-free solder requirements with headroom to spare.
Beyond Soldering
The adjustable air volume makes the 8620DX PRO suitable for multiple applications:
| Application | Settings |
|---|---|
| Heat shrink tubing | Low temp, low airflow |
| Drying | Medium temp, medium airflow |
| Paint removal | High temp, high airflow |
| Debonding | Medium temp, varied airflow |
| Thawing | Low temp, high airflow |
| Preheating | Medium temp, low airflow |
| Adhesive work | Varied settings |
One tool, multiple purposes. The brushless vortex fan adapts to whatever you need.

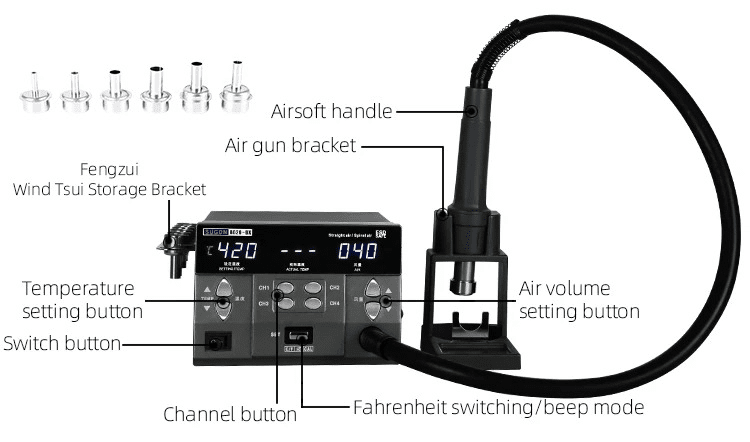

Quick Operation Guide
| Function | How To Access |
|---|---|
| °C/°F Conversion | Press multi-function button during use |
| Buzzer On/Off | Press and hold multi-function button for 2 seconds during use |
| Temperature Calibration | With host off, hold multi-function button 2 seconds, then power on |
| Sleep Mode | Place handle in stand (magnetic switch) |
| Channel Selection | Press channel buttons (CH1-CH4) |
Simple controls for all settings—no complex menus to navigate.

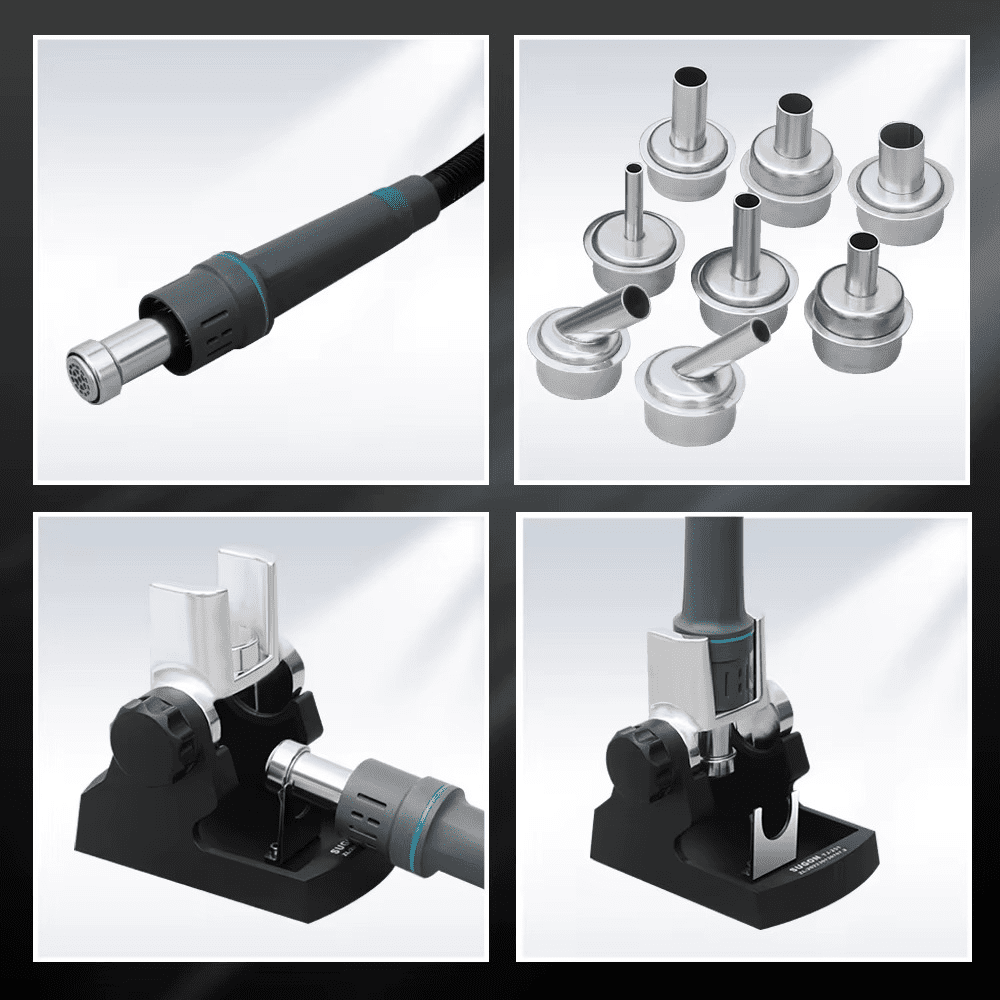

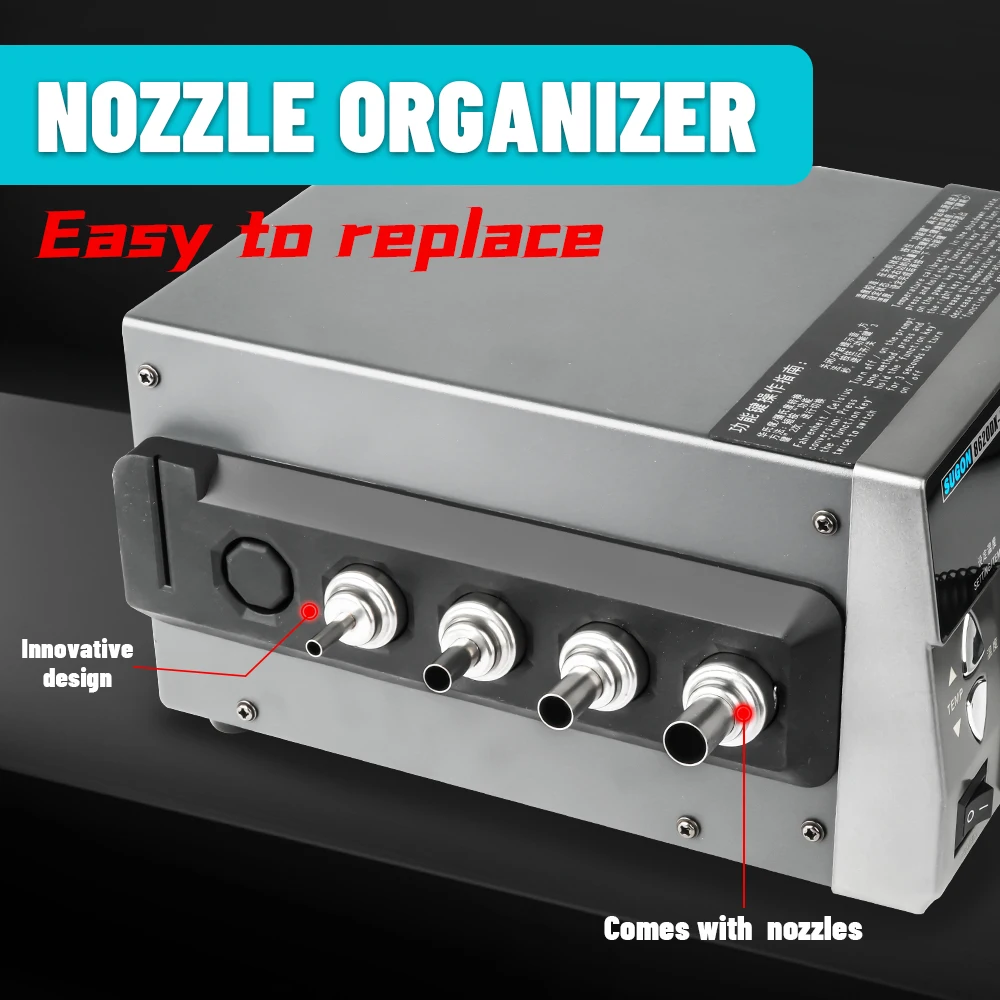

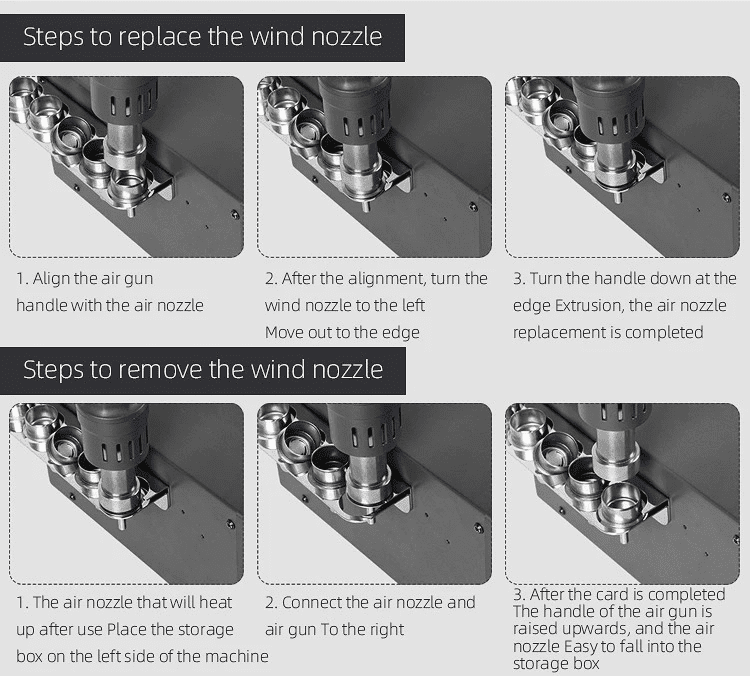

Included Nozzle Set
Eight nozzles included for varied applications:
| Type | Quantity | Best For |
|---|---|---|
| Straight air nozzles | 4 | General BGA work, standard packages |
| Spiral nozzles | 2 | Even heat distribution, larger areas |
| Bend nozzles | 2 | Hard-to-reach areas, angled access |
Complete nozzle set for most rework situations. Expand with specialty nozzles as needed.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SUGON 8620DX PRO |
| Power Output | 1300W (MAX) |
| Input Voltage | AC 110V / AC 220V (Universal) |

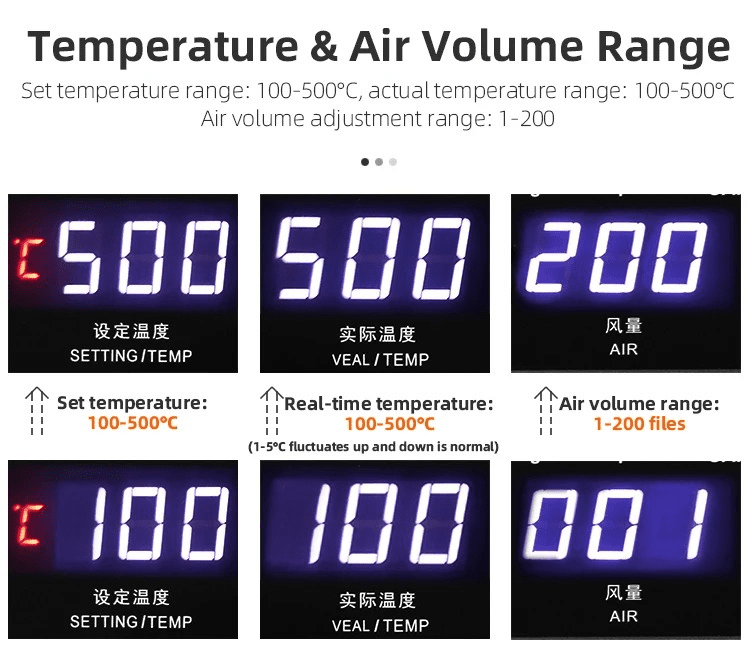

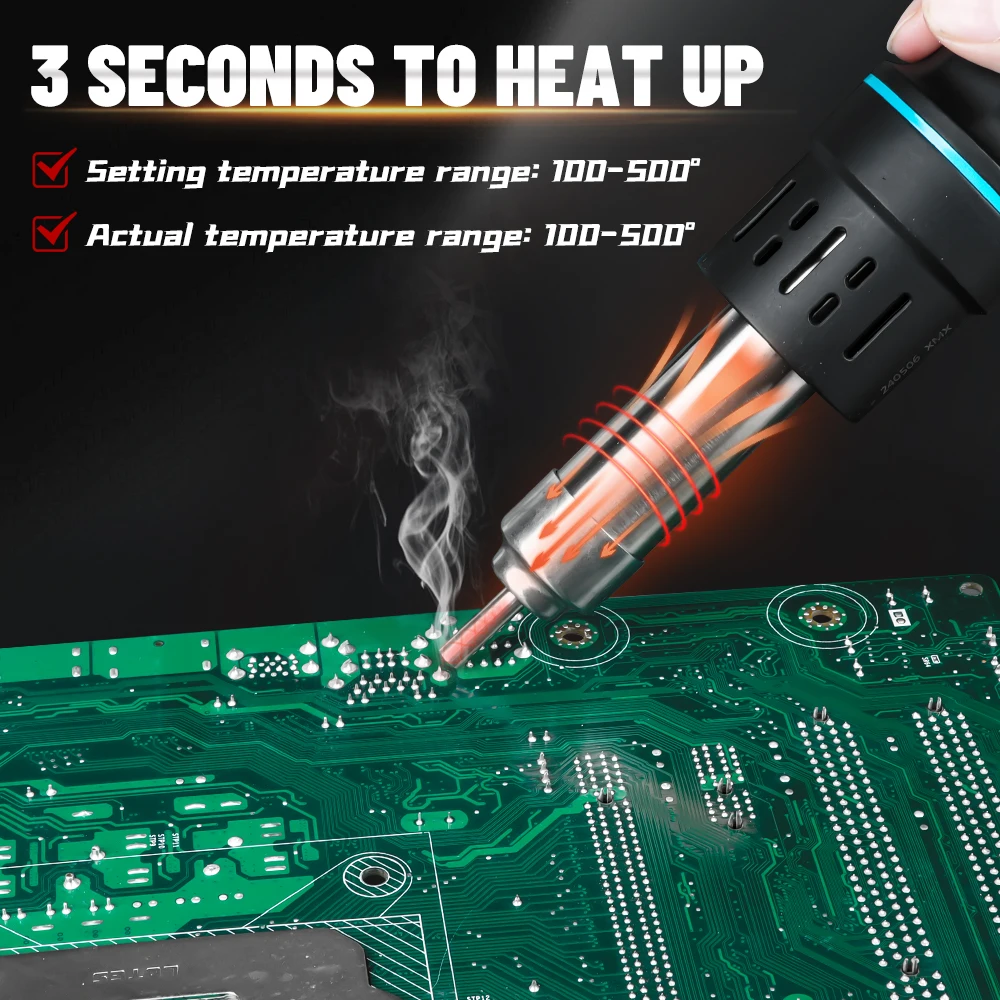

| Temperature Range | 100°C – 500°C (212°F – 932°F) |
| Maximum Airflow | 120 L/min |
| Air Volume Control | Grade 1 – 200 |
| Memory Channels | 4 (CH1, CH2, CH3, CH4) |
| Fan Type | Brushless vortex |
| Temperature Control | Microcomputer zero-crossing trigger |
| Auto-Sleep | Magnetic switch control |
| Cooling | Automatic large air volume |
| Calibration | Self-calibration function |
What’s in the Box
| Quantity | Item |
|---|---|
| 1x | SUGON 8620DX PRO base station |
| 1x | Hot air gun with handle |
| 1x | Air gun stand |
| 4x | Straight air nozzles |
| 2x | Spiral nozzles |
| 2x | Bend nozzles |

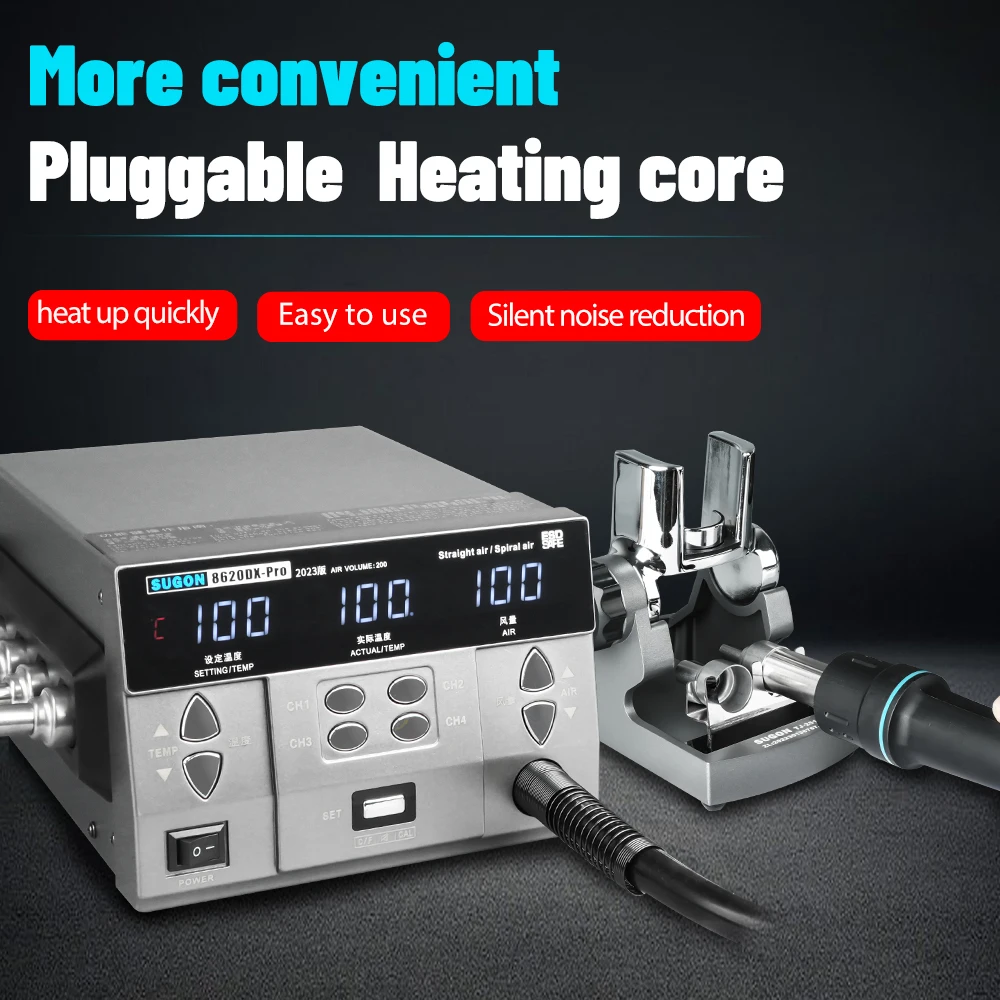

| 1x | Ceramic heating core (gift) |
| 1x | Grounding wire |
| 1x | User manual (6 languages) |
Bonus: Spare ceramic heating core included as gift—ready when you need it.
Grounding Wire for ESD Safety
The included grounding wire provides proper ESD protection:
→ Connect to grounded outlet → Protect sensitive components → Safe working environment → Professional workshop standard
Essential for working on modern electronics.
Ideal For
| User | Why 8620DX PRO Works |
|---|---|
| Laptop repair shops | 1300W handles GPU/APU rework |
| Console repair techs | Power for large die packages |
| Small repair businesses | Cost-effective professional solution |
| Electronics workshops | Versatile for varied applications |
| Automotive electronics | Multiple use capabilities |
| High-volume repair | Reliable daily driver |
What Makers Are Saying
“The microcomputer temperature control is the real deal. Changed airflow from 50 to 150 and temperature didn’t budge. My old station would drop 40°C with that kind of airflow change. Finally predictable results.”
“Four memory channels means I set up once and forget about it. CH1 for phone shields, CH2 for laptop BGA, CH3 for large GPU work, CH4 for preheating. Switch channels and go. The magnetic sleep is instant too—just set it down.”
